TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

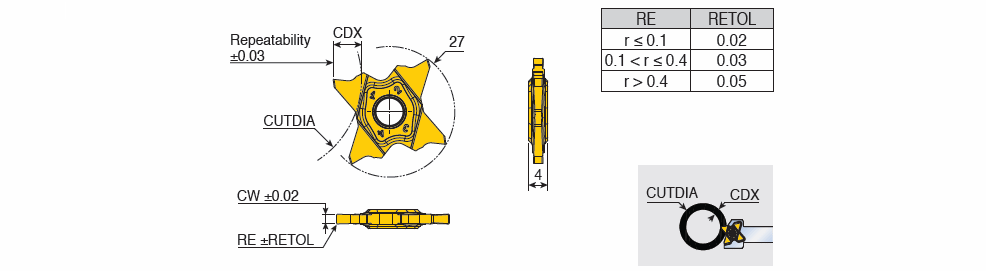

TQS 27. : Unique inserts with 4 cutting edge for Parting and Grooving with high positive rake angle

Designation	CW	RE	CDX	S1	SC	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	HAND	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TQS 27-1.00-0.10	1.00	0.10	3.50	27.00~	P ~	0.03	0.07	P45 ~	1.00~	0.02~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$412783336860356 ~	6402532	1	TT9080
TQS 27-1.50-0.10	1.50	0.10	5.70	27.00~	P ~	0.03	0.10	P45 ~	1.50~	0.02~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$412783336860356 ~	6308888	1	TT9080
TQS 27-1.50-0.20	1.50	0.20	5.70	27.00~	P ~	0.04	0.10	P45 ~	1.50~	0.02~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$412783336860356 ~	6402533	1	TT9080
TQS 27-2.00-0.20	2.00	0.20	6.40	27.00~	P ~	0.04	0.10	P45 ~	2.00~	0.02~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$412783336860356 ~	6402534	1	TT9080
TQS 27-2.39-0.15	2.39	0.15	5.70	27.00~	P ~	0.04	0.15	P45 ~	2.39~	0.02~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$412783336860356 ~	6114763	1	TT9080
TQS 27-2.47-0.20	2.47	0.20	5.70	27.00~	P ~	0.04	0.15	P45 ~	2.47~	0.02~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$412783336860356 ~	6128277	1	TT9080
TQS 27-2.50-0.20	2.50	0.20	5.70	27.00~	P ~	0.04	0.15	P45 ~	2.50~	0.02~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$412783336860356 ~	6402535	1	TT9080
TQS 27-3.00-0.20	3.00	0.20	6.40	27.00~	P ~	0.04	0.15	P45 ~	3.00~	0.02~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$412783336860356 ~	6402536	1	TT9080
TQS 27-3.18-0.20	3.18	0.20	6.40	27.00~	P ~	0.05	0.16	P45 ~	3.18~	0.02~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$412783336860356 ~	6128275	1	TT9080

For parting and grooving range, click on "More Info".
