VNMG-FX : Negative 35° Rhombic inserts for finishing of mild steels with optimal chip control on pulley & ball stud machining

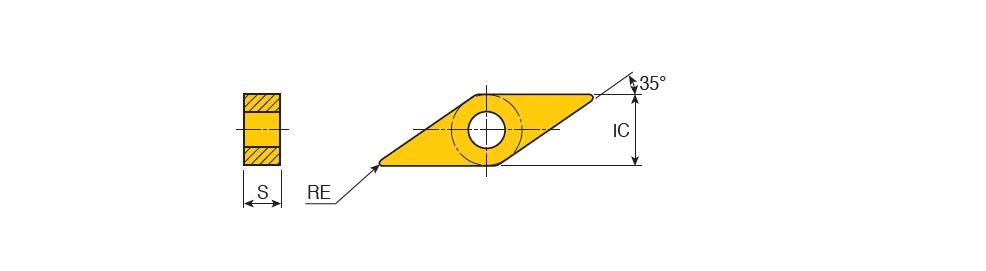

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VNMG 160404 FX	9.52	4.76	0.40	FX ~	35~	0.00~	0.20	2.00	0.05	0.20	6~	~	U ~	16.60~	V ~	71DD68D301C30 ~	Cermet ~	8105B ~	2~	ISO$VN1604042NB$$04 ~	331 FX ~	VNMG ~	Y ~	16 ~	6213124	4	TT8125B TT8115B TT8105B CT3000
VNMG 160408 FX	9.52	4.76	0.80	FX ~	35~	0.00~	0.20	2.00	0.07	0.20	6~	~	U ~	16.60~	V ~	71DD68D301C30 ~	Cermet ~	8115B ~	2~	ISO$VN1604082NB$$08 ~	332 FX ~	VNMG ~	Y ~	16 ~	6212829	7	TT8125B TT9215 TT8115B TT7015 TT7005 CT3000 PV3010
VNMG 160412 FX	9.52	4.76	1.20	FX ~	35~	0.00~	0.20	2.00	0.05	0.20	6~	~	U ~	16.60~	V ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$VN1604122NB$$12 ~	333 FX ~	VNMG ~	Y ~	16 ~	6231277	2	TT8125B TT8115B
