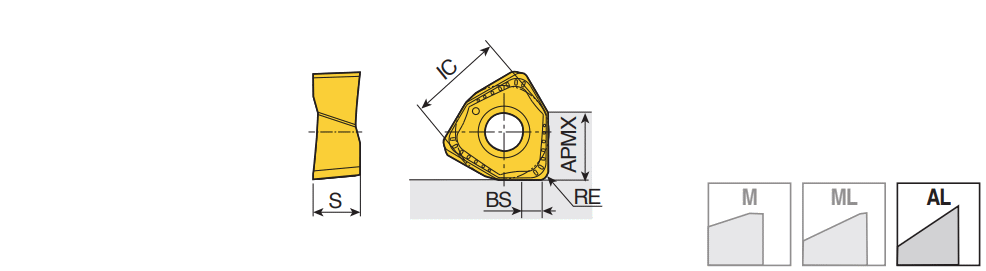

6NGU 06/09-AL : Double-sided ground positive 6 cutting edges inserts for aluminum & non-ferrous machining and 90° shoulders

Designation	IC	S	APMX	BS	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
6NGU 060404R-AL	9.26	4.76	6.20	2.36	0.40	6.00~	1.50	5.00	0.400	0.100	~	6~	M2R-6N09 ~	W ~	71DDA089C8D1E ~	G10 ~	AL ~	K10 ~	IS$$386496738580332 ~	6NGU 06 ~	0~	5616099	1	K10
6NGU 060408R-AL	9.26	4.76	6.20	1.96	0.80	6.00~	1.50	5.00	0.400	0.100	~	6~	M2R-6N09 ~	W ~	71DDA089C8D1E ~	G10 ~	AL ~	K10 ~	IS$$386496738580332 ~	6NGU 06 ~	0~	5630012	1	K10
6NGU 090504R-AL	13.05	6.70	9.20	2.20	0.40	6.00~	2.50	7.50	0.400	0.100	~	6~	M2R-6N09 ~	W ~	71DDA089C8D1E ~	G10 ~	AL ~	K10 ~	IS$$386496738580332 ~	6NGU 09 ~	0~	5630013	1	K10
6NGU 090508R-AL	13.05	6.70	9.20	2.00	0.80	6.00~	2.50	7.50	0.400	0.100	~	6~	M2R-6N09 ~	W ~	71DDA089C8D1E ~	G10 ~	AL ~	K10 ~	IS$$386496738580332 ~	6NGU 09 ~	0~	5616100	1	K10
