TaeguTec Cutting Tools - Metal Working Tools - Turning -

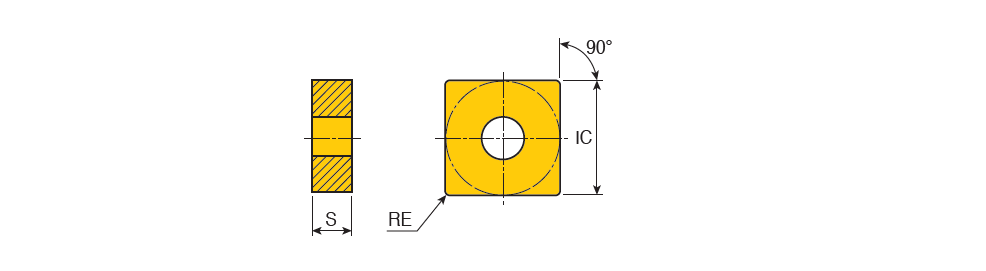

SNMM-EH 25 : Negative Dingle-sided Square inserts for heavy turning of stainless steels and mild steels with excellent chip control

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMM 250924 EH	25.40	9.52	2.40	25.40~	EH ~	90~	0.00~	2.80	18.00	0.45	1.20	2~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT9225~	2~	ISO$SN2509242NB$$24 ~	866 EH ~	SNMM ~	Y ~	25 ~	5521438		2		TT9235 TT9225
