TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

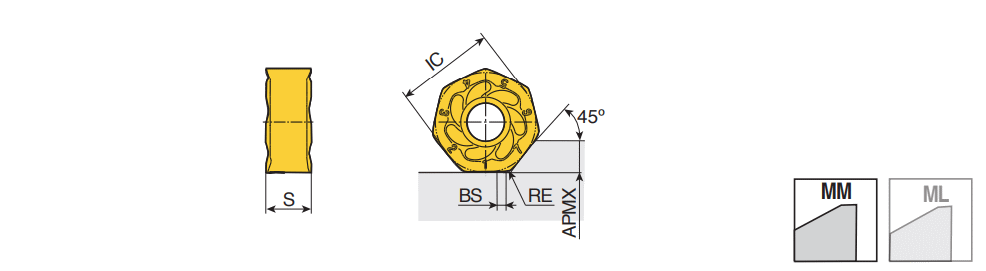

XNHU 06 ANN-MM : Ground double-sided inserts of economical 14 cutting edges with optimized geometry for cast iron of max. depth of cut 3.5 mm

Designation	IC	S	BS	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
XNHU 0605 ANN-MM	13.70	6.20	1.00	1.00	3.50	6.00~	14~	C2H-XN06 ~	1.00	3.50	0.200	0.100	M8 ~	X ~	71DDA089C8D1E ~	G50 ~	MM ~	TT2510~	IS$$405155547503839 ~	XNHU 06 ~	0~	6178762		4		TT9080 TT7515 TT6080 TT2510
