TaeguTec Cutting Tools - Metal Working Tools - Turning -

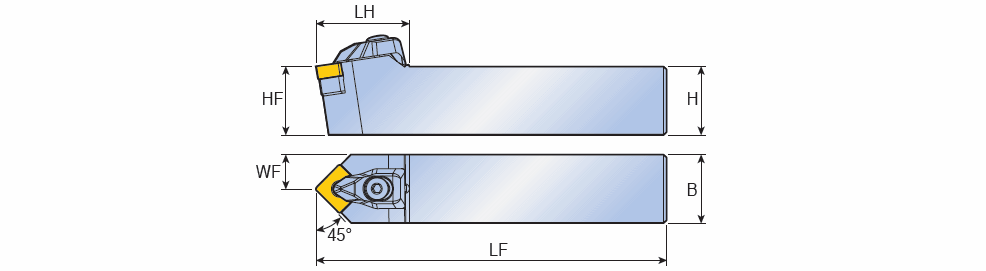

TSDNN (RHINO) : RHINOTURN T-holders with 45° approach angle for SN.. 0904 inserts

Designation	HF	H	B	LF	LH	WF	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID	IIC	GICAT	GIREM	giic	GICODE
TSDNN 2020 K0904	20.0	20.0	20.0	125.00	28.0	10.00	9.52~	4.76~	0~	45.0~	T-HOLDER-R ~	SQUARE ~	~	71E01A0E85121 ~	SNMG 090408 PC	IS$$889265702672119 ~	6130406		0
TSDNN 2525 M0904	25.0	25.0	25.0	150.00	28.0	12.50	9.52~	4.76~	0~	45.0~	T-HOLDER-R ~	SQUARE ~	~	71E01A0E85121 ~	SNMG 090408 PC	IS$$889265702672119 ~	6129792		0
