TaeguTec Cutting Tools - Metal Working Tools - Turning -

A-TDUNR/L (RHINO) : T-holder RHINOTURN boring bars for DN.. 1305 inserts with coolant and 93° approach angle

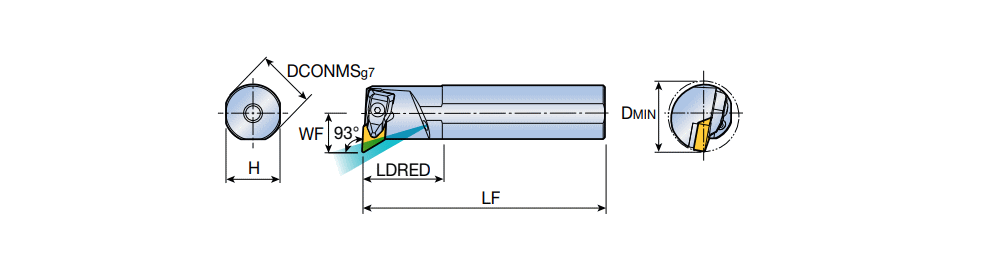

Right-hand shown

Designation	DCONMS	H	LF	LDRED	WF	DMIN	IC	t	Kr	KAPR	CL	Tool typ	HAND	S2	ClssID	MIID	IIC	IIC_2	IIC_3	GICAT
A32S TDUNL 1305	32.00	30.0	250.00	45.0	22.00	40.00	11.11~	5.56~	30~	93.0~	T-HOLDER-R ~	BORING BAR ~	L ~	R ~	71E01A0E9CBA9 ~	DNMG 130508 PC	IS$$1500013479022245 ~	IS$$2001615641700060 ~	IS$$899759615292330 ~	6130444
A32S TDUNR 1305	32.00	30.0	250.00	45.0	22.00	40.00	11.11~	5.56~	30~	93.0~	T-HOLDER-R ~	BORING BAR ~	R ~	L ~	71E01A0E9CBA9 ~	DNMG 130508 PC	IS$$1500013479022245 ~	IS$$2001615641700060 ~	IS$$899773775059392 ~	6130443
A40T TDUNL 1305	40.00	37.0	300.00	55.0	27.00	50.00	11.11~	5.56~	30~	93.0~	T-HOLDER-R ~	BORING BAR ~	L ~	R ~	71E01A0E9CBA9 ~	DNMG 130508 PC	IS$$1500013479022245 ~	IS$$2001615641700060 ~	IS$$899759615292330 ~	6130446
A40T TDUNR 1305	40.00	37.0	300.00	55.0	27.00	50.00	11.11~	5.56~	30~	93.0~	T-HOLDER-R ~	BORING BAR ~	R ~	L ~	71E01A0E9CBA9 ~	DNMG 130508 PC	IS$$1500013479022245 ~	IS$$2001615641700060 ~	IS$$899773775059392 ~	6130445
