TaeguTec Cutting Tools - Metal Working Tools - Turning -

A-TDZNR/L (RHINO) : T-holder RHINOTURN back boring bars for DN.. 1305 inserts with coolant and 93° approach angle

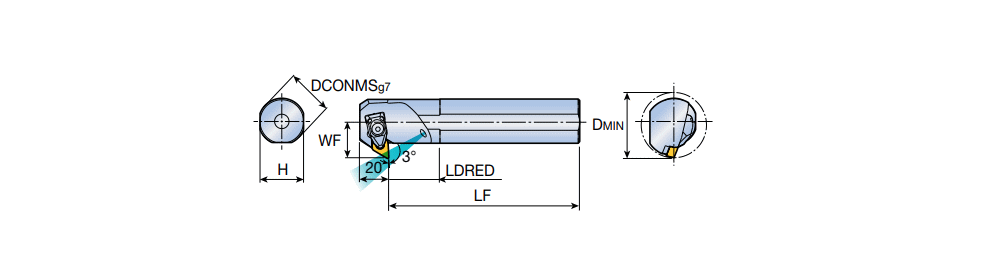

Right-hand shown

Designation	DCONMS	H	LF	LDRED	WF	F1	DMIN	IC	t	CL	Tool typ	HAND	KAPR	Kr	S2	ClssID	MIID	IIC	IIC_2	GICAT
A32S TDZNL 1305	32.00	30.0	250.00	35.0	25.00	10.5	45.00	11.11~	5.56~	T-HOLDER-R ~	BORING BAR ~	L ~	93.0~	30~	R ~	71E01A0E9CBA9 ~	DNMG 130508 PC	IS$$2001615641700060 ~	IS$$899773775059392 ~	6130452
A32S TDZNR 1305	32.00	30.0	250.00	35.0	25.00	10.5	45.00	11.11~	5.56~	T-HOLDER-R ~	BORING BAR ~	R ~	93.0~	30~	L ~	71E01A0E9CBA9 ~	DNMG 130508 PC	IS$$2001615641700060 ~	IS$$899759615292330 ~	6130451
A40T TDZNL 1305	40.00	37.0	300.00	40.0	29.00	10.5	50.00	11.11~	5.56~	T-HOLDER-R ~	BORING BAR ~	L ~	93.0~	30~	R ~	71E01A0E9CBA9 ~	DNMG 130508 PC	IS$$2001615641700060 ~	IS$$899773775059392 ~	6130454
A40T TDZNR 1305	40.00	37.0	300.00	40.0	29.00	10.5	50.00	11.11~	5.56~	T-HOLDER-R ~	BORING BAR ~	R ~	93.0~	30~	L ~	71E01A0E9CBA9 ~	DNMG 130508 PC	IS$$2001615641700060 ~	IS$$899759615292330 ~	6130453
