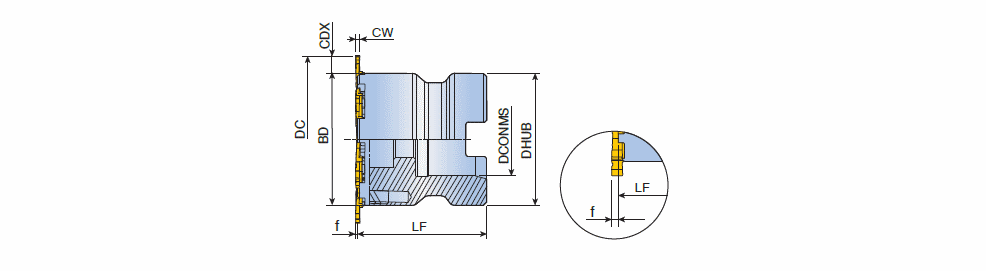

TSM-R-TS16 (Flange type) : Shallow groove milling tools with precision ground 3-edged inserts for internal and external applications

Designation	Tool sty	S1	CWN	CWX	CICT	DC	DCONMS	BD	DHUB	L		Arbor	Ft	ClssID		PD	KAPR	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
TSM D50-22R-6Z-TS16	FACE MILL ~	1.00~	1.20	4.00	6	50.00	22.00	39.70	39.70	39.00	0.24	A	TSM-Z ~	71EF07E083383 ~	X ~	RF ~	4.0~	FDA ~	02 ~	IS$$225159849726873 ~	39.00~	6~	6~	6~	6125902
TSM D50-22R-6Z-B-TS16	FACE MILL ~	2.00~	4.01	6.00	6	50.00	22.00	39.70	39.70	39.00	0.24	A	TSM-Z-B ~	71EF07E083383 ~	X ~	RF ~	4.0~	FDA ~	02 ~	IS$$187633272427674 ~	39.00~	6~	6~	6~	6125903
TSM D63-22R-8Z-TS16	FACE MILL ~	3.00~	1.20	4.00	8	63.00	22.00	52.70	40.00	39.00	0.40	A	TSM-Z ~	71EF07E083383 ~	X ~	F ~	4.0~	FDA ~	02 ~	IS$$225159849726873 ~	39.00~	8~	8~	8~	6125904
TSM D63-22R-8Z-B-TS16	FACE MILL ~	4.00~	4.01	6.00	8	63.00	22.00	52.70	40.00	39.00	0.27	A	TSM-Z-B ~	71EF07E083383 ~	X ~	F ~	4.0~	FDA ~	02 ~	IS$$187633272427674 ~	39.00~	8~	8~	8~	6125905
TSM D80-27R-11Z-TS16	FACE MILL ~	5.00~	1.20	4.00	11	80.00	27.00	69.70	69.70	49.00	0.40	B	TSM-Z ~	71EF07E083383 ~	X ~	XF ~	4.0~	FDA ~	02 ~	IS$$225159849726873 ~	49.00~	11~	11~	11~	6125906
TSM D80-27R-11Z-B-TS16	FACE MILL ~	6.00~	4.01	6.00	11	80.00	27.00	69.70	69.70	49.00	0.95	B	TSM-Z-B ~	71EF07E083383 ~	X ~	XF ~	4.0~	FDA ~	02 ~	IS$$187633272427674 ~	49.00~	11~	11~	11~	6125907

Ap, f, Tmax & CDX: Please refer to insert data
