TaeguTec Cutting Tools - Metal Working Tools - Turning -

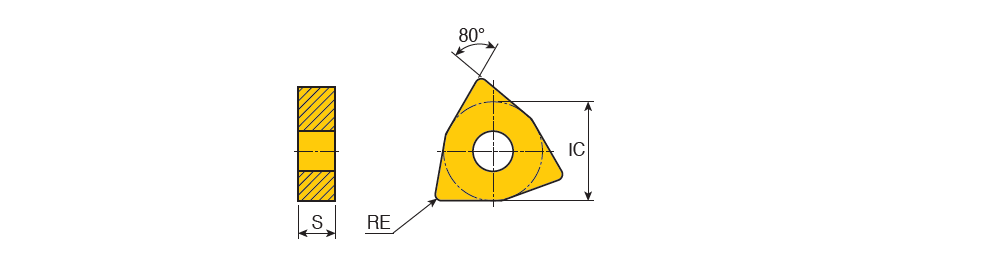

WNMX-EM (RHINO) : Negative 80° Trigon RHINOTURN inserts for medium machining of stainless steels

Designation	IC	S	RE	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	CBMD	AN	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMX 060404 EM	9.52	4.76	0.40	0.40	3.00	0.10	0.35	6~	~	U ~	6.52~	W ~	71DD68D73218C ~	EM ~	0.00~	RHINO-TURN ~	CVD ~	TT5080~	2~	ISO$WN0604042NA$$04 ~	331 EM ~	WNMX ~	Y ~	6 ~	6129161	5	TT9235 TT9080 TT9225 TT5080 TT9215
WNMX 060408 EM	9.52	4.76	0.80	0.50	3.00	0.13	0.40	6~	~	U ~	6.52~	W ~	71DD68D73218C ~	EM ~	0.00~	RHINO-TURN ~	CVD ~	TT5080~	2~	ISO$WN0604082NA$$08 ~	332 EM ~	WNMX ~	Y ~	6 ~	6129162	5	TT9235 TT9080 TT9225 TT5080 TT9215
WNMX 060412 EM	9.52	4.76	1.20	0.70	3.00	0.15	0.40	6~	~	U ~	6.52~	W ~	71DD68D73218C ~	EM ~	0.00~	RHINO-TURN ~	CVD ~	TT5080~	2~	ISO$WN0604122NA$$12 ~	333 EM ~	WNMX ~	Y ~	6 ~	6129163	5	TT9235 TT9080 TT9225 TT5080 TT9215
