TaeguTec Cutting Tools - Metal Working Tools - Turning -

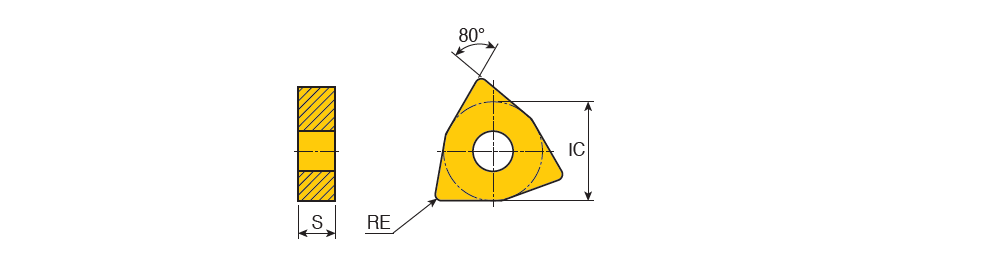

WNMX-FG (RHINO) : Negative 80° Trigon RHINOTURN inserts for finishing & semi- finishing of steels, stainless steels and cast irons

Designation	IC	S	RE	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	CBMD	AN	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMX 060404 FG	9.52	4.76	0.40	0.20	2.00	0.07	0.30	6~	~	U ~	6.52~	W ~	71DD68D73218C ~	FG ~	0.00~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$WN0604042NA$$04 ~	331 FG ~	WNMX ~	Y ~	6 ~	6212639		4		TT5100 TT8125B TT5080 TT8115B
WNMX 060408 FG	9.52	4.76	0.80	0.50	2.00	0.10	0.35	6~	~	U ~	6.52~	W ~	71DD68D73218C ~	FG ~	0.00~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$WN0604082NA$$08 ~	332 FG ~	WNMX ~	Y ~	6 ~	6212596		2		TT8125B TT8115B
