TaeguTec Cutting Tools - Metal Working Tools - Turning -

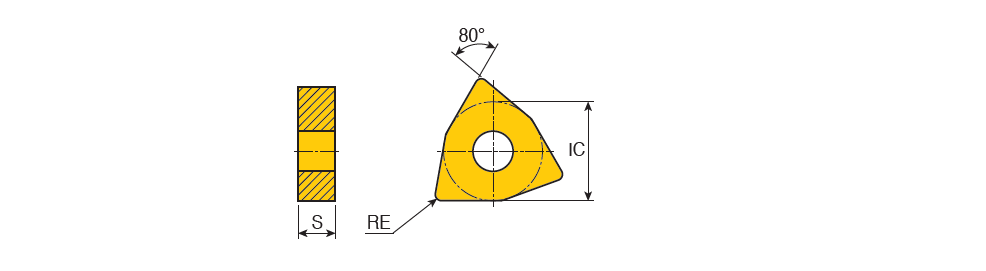

WNMX-MT (RHINO) : Negative 80° Trigon RHINOTURN inserts for medium rough applications of steel, cast iron & stainless steel

Designation	IC	S	RE	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	CBMD	AN	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMX 060404 MT	9.52	4.76	0.40	0.80	3.00	0.10	0.35	6~	~	U ~	6.52~	W ~	71DD68D73218C ~	MT ~	0.00~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$WN0604042NA$$04 ~	331 MT ~	WNMX ~	Y ~	6 ~	6340822	7	TT9235 TT5100 TT8125B TT5080 TT8115B TT7015 TT7005
WNMX 060408 MT	9.52	4.76	0.80	1.00	3.00	0.15	0.45	6~	~	U ~	6.52~	W ~	71DD68D73218C ~	MT ~	0.00~	RHINO-TURN ~	CVD ~	8105B ~	2~	ISO$WN0604082NA$$08 ~	332 MT ~	WNMX ~	Y ~	6 ~	6247916	9	TT9235 TT9225 TT5100 TT5080 TT9215 TT8115B TT8105B TT7015 TT7005
WNMX 060412 MT	9.52	4.76	1.20	1.20	3.00	0.20	0.55	6~	~	U ~	6.52~	W ~	71DD68D73218C ~	MT ~	0.00~	RHINO-TURN ~	CVD ~	8105B ~	2~	ISO$WN0604122NA$$12 ~	333 MT ~	WNMX ~	Y ~	6 ~	6238169	5	TT5100 TT8115B TT8105B TT7015 TT7005
