TaeguTec Cutting Tools - Metal Working Tools - Turning -

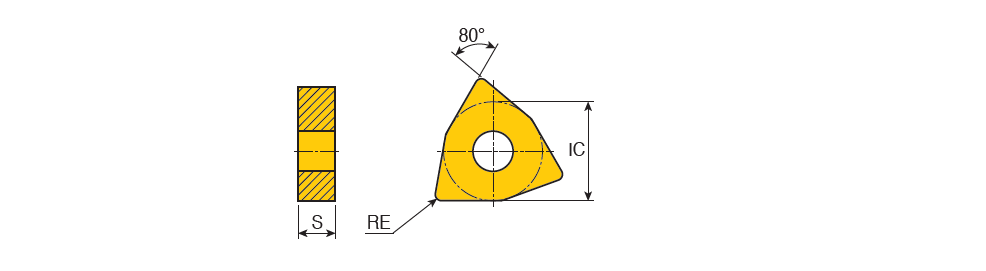

WNMX-PC (RHINO) : Negative 80° Trigon RHINOTURN inserts for medium to semi- finishing applications of steels & automotive parts

Designation	IC	S	RE	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	CBMD	AN	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMX 060404 PC	9.52	4.76	0.40	0.40	3.00	0.10	0.30	6~	~	U ~	6.52~	W ~	71DD68D73218C ~	PC ~	0.00~	RHINO-TURN ~	CVD ~	8105B ~	2~	ISO$WN0604042NA$$04 ~	331 PC ~	WNMX ~	Y ~	6 ~	6241096	1	TT8105B
WNMX 060408 PC	9.52	4.76	0.80	0.50	3.00	0.15	0.40	6~	~	U ~	6.52~	W ~	71DD68D73218C ~	PC ~	0.00~	RHINO-TURN ~	CVD ~	8105B ~	2~	ISO$WN0604082NA$$08 ~	332 PC ~	WNMX ~	Y ~	6 ~	6212980	4	TT9080 TT8125B TT8115B TT8105B
WNMX 060412 PC	9.52	4.76	1.20	0.60	3.00	0.18	0.50	6~	~	U ~	6.52~	W ~	71DD68D73218C ~	PC ~	0.00~	RHINO-TURN ~	CVD ~	8105B ~	2~	ISO$WN0604122NA$$12 ~	333 PC ~	WNMX ~	Y ~	6 ~	6242851	3	TT9080 TT8115B TT8105B
