TaeguTec Cutting Tools - Metal Working Tools - Turning -

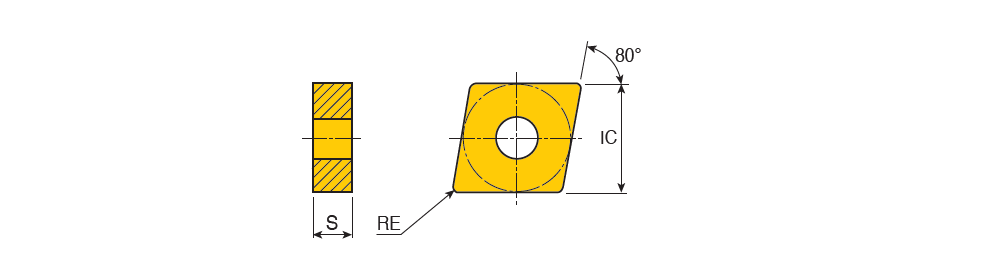

CNMG-EA (RHINO) : Negative 80° Rhombic RHINOTURN inserts for finishing of exotic materials

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 090404 EA	9.52	4.76	0.40	EA ~	80~	0.00~	0.20	1.50	0.05	0.30	4~	~	U ~	9.70~	C ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	TT5080~	2~	ISO$CN0904042NB$$04 ~	331 EA ~	CNMG ~	Y ~	9 ~	6118467		5		TT9235 TT9080 TT9225 TT5080 TT9215
CNMG 090408 EA	9.52	4.76	0.80	EA ~	80~	0.00~	0.30	1.50	0.07	0.40	4~	~	U ~	9.70~	C ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	TT5080~	2~	ISO$CN0904082NB$$08 ~	332 EA ~	CNMG ~	Y ~	9 ~	6118428		4		TT9080 TT9225 TT5080 TT9215
