TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

TMTH-F : Helical long edge finishing inserts.

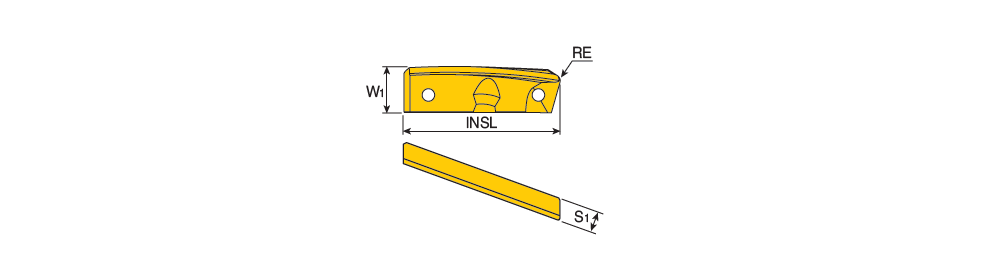

Designation	INSL	W1	S1	TPI	Insert	0	0	fz (min)	fz (max)	0	SC	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TMTH 23F R0.2	27.00	8.00	3.50	0.0~	TMTH23 ~	0.00~	0.00~	0.000~	0.000~	~	L ~	TT9030~	IS$$96248524205120 ~	6214593	1	TT9030
TMTH 23F R0.5	27.00	8.00	3.50	0.0~	TMTH23 ~	0.00~	0.00~	0.000~	0.000~	~	L ~	TT9030~	IS$$96248524205120 ~	6344785	1	TT9030
TMTH 23F R1.0	27.00	8.00	4.00	0.0~	TMTH23 ~	0.00~	0.00~	0.000~	0.000~	~	L ~	TT9030~	IS$$96248524205120 ~	6214594	1	TT9030
TMTH 32F R0.2	32.00	9.00	4.00	0.0~	TMTH23 ~	0.00~	0.00~	0.000~	0.000~	~	L ~	TT9030~	IS$$96248524205120 ~	6214602	1	TT9030
TMTH 32F R0.5	32.00	9.00	4.00	0.0~	TMTH23 ~	0.00~	0.00~	0.000~	0.000~	~	L ~	TT9030~	IS$$96248524205120 ~	6214603	1	TT9030
TMTH 32F R1.0	32.00	9.00	4.00	0.0~	TMTH23 ~	0.00~	0.00~	0.000~	0.000~	~	L ~	TT9030~	IS$$96248524205120 ~	6214604	1	TT9030
TMTH 45F R0.2	37.00	11.90	5.00	0.0~	TMTH23 ~	0.00~	0.00~	0.000~	0.000~	~	L ~	TT9030~	IS$$96248524205120 ~	6214612	1	TT9030
