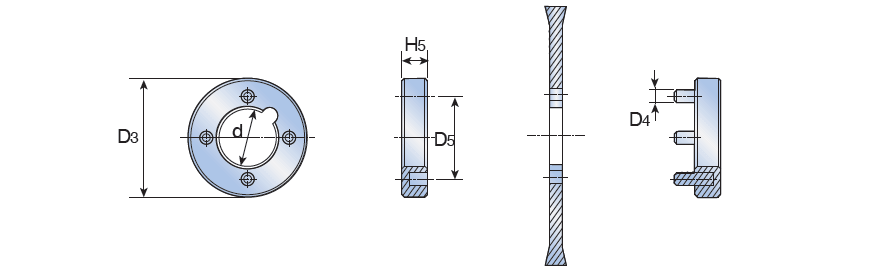

TR(drive flange set) : Drive flange set for slitting cutters of TSC

Designation	d	D3	D5	D4	H5	GICAT
TR 22-46	22.00	46.00	32.00	5.0	10.00	4352840
TR 32-55	32.00	55.00	45.00	6.0	10.00	4352841
TR 40-80	40.00	80.00	63.00	11.0	12.00	4352842
