TaeguTec Cutting Tools - Metal Working Tools - Turning -

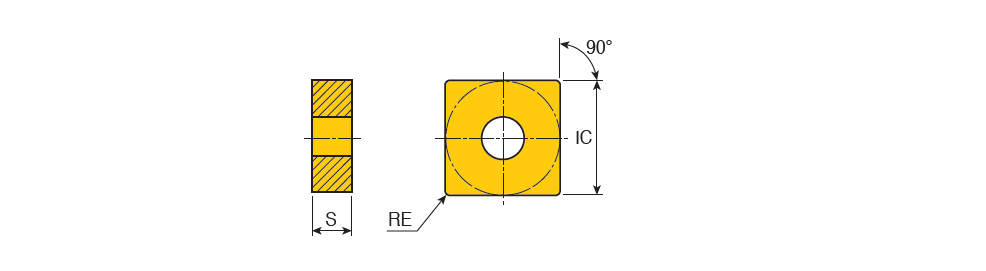

SNMD 31-HD : Double-sided negative Square inserts of heavy roughing on one side and finishing on the other side mounted on strong Hook lever holders for all kinds of shafts

Designation	IC	S	RE	l	D1	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMD 310924 HD	31.75	9.52	2.40	31.75~	9.50~	HD ~	90~	0.00~	7.00	25.00	0.60	1.50	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	2~	ISO$SN3109242NB$$24 ~	1066 H ~	SNMD ~	Y ~	31 ~	6212777		2		TT8135 TT8125B
