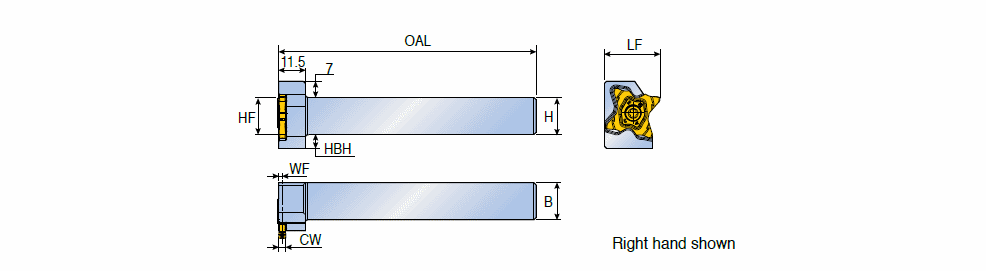

TQHPR/L-27 : Perpendicular holders for parting & grooving with TQ. 27 inserts


  DesignationS2 CWN  CWX  H HF B WF OAL LF HBH MIID S1 Tool typ  HAND ClssID SSC  IIC IIC_2 GICATGIREMgiicGICODE
  TQHPL 16-27  1.00000 ~0.505.3016.016.016.01.50120.0024.006.0TQJ 27-2.00-0.10 ~27.00~SQUARE ~X ~L ~71E01A0E85121 ~27 ~IS$$300068497396360 ~IS$$412783336860356 ~2300520 0
  TQHPR 16-27  1.00000 ~0.505.3016.016.016.01.50120.0024.006.0TQJ 27-2.00-0.10 ~27.00~SQUARE ~X ~R ~71E01A0E85121 ~27 ~IS$$300068497396360 ~IS$$412783336860356 ~6218974 0
  TQHPL 20-27  2.00000 ~0.505.3020.020.020.01.50120.0028.002.0TQJ 27-2.00-0.10 ~27.00~SQUARE ~X ~L ~71E01A0E85121 ~27 ~IS$$300068497396360 ~IS$$412783336860356 ~6179391 0
  TQHPR 20-27  2.00000 ~0.505.3020.020.020.01.50120.0028.002.0TQJ 27-2.00-0.10 ~27.00~SQUARE ~X ~R ~71E01A0E85121 ~27 ~IS$$300068497396360 ~IS$$412783336860356 ~6179392 0
  TQHPL 25-27  3.00000 ~0.505.3025.025.025.01.50135.0033.00-TQJ 27-2.00-0.10 ~27.00~SQUARE ~X ~L ~71E01A0E85121 ~27 ~IS$$300068497396360 ~IS$$412783336860356 ~2302717 0
  TQHPR 25-27  3.00000 ~0.505.3025.025.025.01.50135.0033.00-TQJ 27-2.00-0.10 ~27.00~SQUARE ~X ~R ~71E01A0E85121 ~27 ~IS$$300068497396360 ~IS$$412783336860356 ~2300525 0
CWX is available up to 5.30mm for special inserts
