TaeguTec Cutting Tools - Metal Working Tools - Turning -

SRGCR/L 12-TB : Screw type high pressure coolant holders with 90° approach angle & RC.T 1204 positive type round inserts

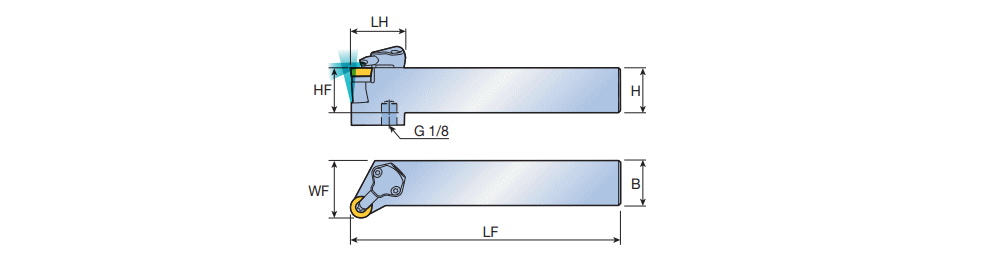

Right-hand shown
Coolant pressure: recommended 70 bar, max. up to 300 bar

Designation	HF	H	B	LF	LH	WF	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID	IIC	GICAT	GIREM	giic	GICODE
SRGCR 2525 M12-TB	25.0	25.0	25.0	150.00	30.0	32.00	12.00~	4.76~	27~	90.0~	SCREW ~	SQUARE ~	R ~	71E01A0E85121 ~	RCMT 120400 MT	IS$$73953329217690 ~	6121341		0
