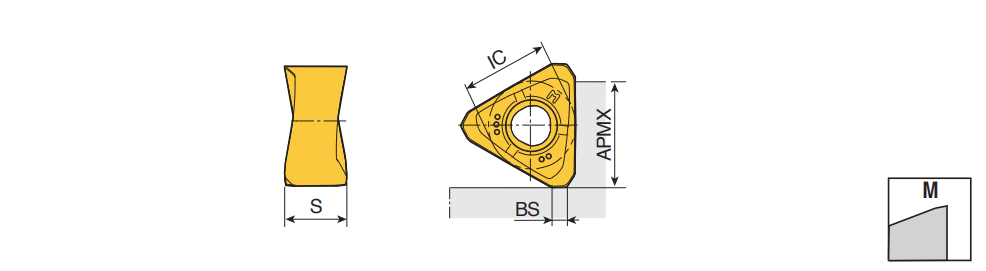

TNMX 18 PNTR-M : Triangular double-sided inserts with 6 helical cutting edges for general machining for 90° shoulders

Designation	IC	S	BS	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMX 1806 PNTR-M	11.65	8.00	1.40	13.00	18.00~	3.90	11.00	0.150	0.070	M8 ~	6~	M2R-TN18 ~	T ~	~	U60 ~	~	8525B ~	IS$$1199662420775822 ~	TNMX 18 ~	0~	6338314		6		TT8080 TT8525B TT7080 TT9080 TT6080 TT2510
