TaeguTec Cutting Tools - Metal Working Tools - Turning -

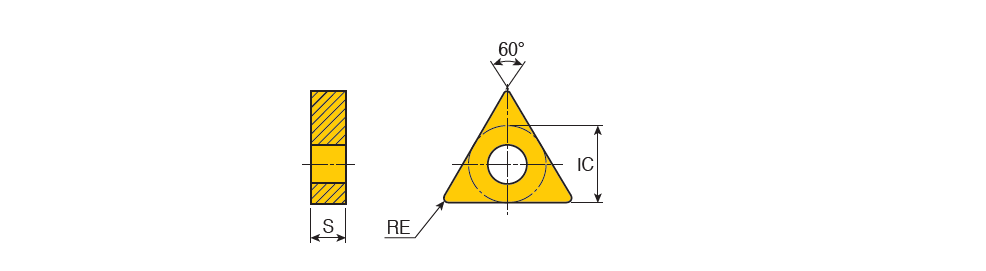

TNMG- (RHINO) : Negative 60° Triangular RHINOTURN inserts for medium rough machining of cast irons

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMG 130404	7.94	4.76	0.40	MG- ~	60~	0.00~	0.50	3.50	0.10	0.45	6~	~	U ~	13.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	TT7005~	2~	ISO$TN1304042NB$$04 ~	2.531 ~	TNMG ~	Y ~	13 ~	6117980	2	TT7015 TT7005
TNMG 130408	7.94	4.76	0.80	MG- ~	60~	0.00~	0.50	3.50	0.10	0.50	6~	~	U ~	13.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	TT7005~	2~	ISO$TN1304082NB$$08 ~	2.532 ~	TNMG ~	Y ~	13 ~	6117990	2	TT7015 TT7005
TNMG 130412	7.94	4.76	1.20	MG- ~	60~	0.00~	0.50	3.50	0.10	0.55	6~	~	U ~	13.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	TT7015~	2~	ISO$TN1304122NB$$12 ~	2.533 ~	TNMG ~	Y ~	13 ~	6118002	1	TT7015
