TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

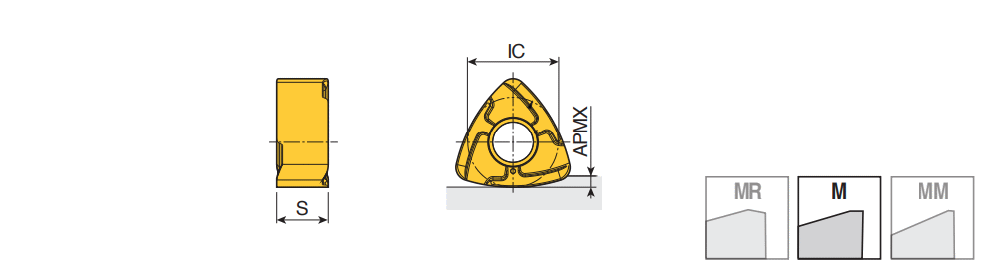

BLMP 13-M : Double-sided inserts of reinforced 6 cutting edges for high feed milling of general applications in max. ap 2.0 mm

TT3540, TT9540 : Available upon customer request.

Designation	IC	S	APMX	S1	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	SC	l	Rg		Pocket	ESP	ClssID	CB	GRDMFG	IIC	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
BLMP 1306R-M	12.30	7.00	2.00	13.00~	C2F-BL13 ~	0.50	2.00	2.000	0.400	M8 ~	6~	B ~	12.30~	3.0~	0.01~	BLMP 13 ~	U60 ~	71DDA089C8D1E ~	M ~	8525B ~	IS$$1730394793901088 ~	0~	6338576		9		TT8020 TT8080 TT8525B TT3540 TT9540 TT3535 TT9080 TT6080 TT2510
