TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TEBL-M-13 : High feed end mills with BLMP 13 inserts of 6 cutting edges and T-FLEXTEC modular adaptations in max. Ap 2.0 mm

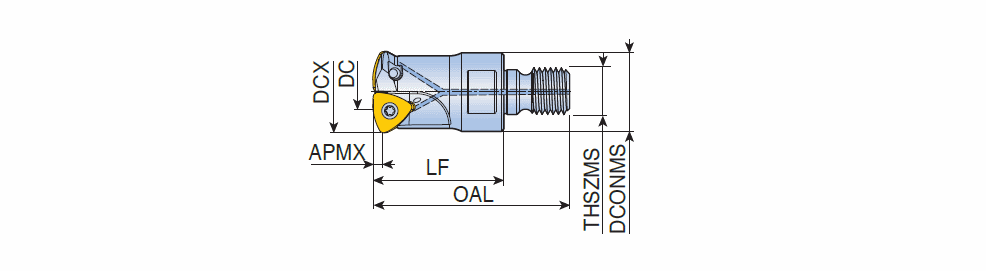

Designation	Tool sty	DCX	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX	S1		FF/RN	HAND	KAPR	RMPX	Arbor	PD	Insert	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	TQ_3	ZEFF	ZEFP	ZNP	GICAT
TEBL 232-M16-13	MODULAR ~	32.00	12.90	2	30.00	50.00	75.00	M16	2.00	13.00~	0.25	FF ~	~	1.0~	0.80~	~	C ~	C2F-BL13 ~	71E01A05D27A8 ~	BLMP 1306R-M	O ~	SAI ~	02 ~	IS$$1730394793901088 ~	50.00~	0~	2~	2~	2~	6138135
TEBL 233-M16-13	MODULAR ~	33.00	14.30	2	30.00	50.00	75.00	M16	2.00	13.00~	0.26	FF ~	~	1.0~	1.10~	~	C ~	C2F-BL13 ~	71E01A05D27A8 ~	BLMP 1306R-M	O ~	SAI ~	02 ~	IS$$1730394793901088 ~	50.00~	0~	2~	2~	2~	6138136
TEBL 235-M16-13	MODULAR ~	35.00	16.10	2	30.00	50.00	75.00	M16	2.00	13.00~	0.28	FF ~	~	1.0~	1.10~	~	C ~	C2F-BL13 ~	71E01A05D27A8 ~	BLMP 1306R-M	O ~	SAI ~	02 ~	IS$$1730394793901088 ~	50.00~	0~	2~	2~	2~	6138137
TEBL 340-M16-13	MODULAR ~	40.00	20.70	3	30.00	50.00	75.00	M16	2.00	13.00~	0.31	FF ~	~	1.0~	1.30~	~	RC ~	C2F-BL13 ~	71E01A05D27A8 ~	BLMP 1306R-M	O ~	SAI ~	02 ~	IS$$1730394793901088 ~	50.00~	0~	3~	3~	3~	6138138
TEBL 342-M16-13	MODULAR ~	42.00	22.60	3	30.00	50.00	75.00	M16	2.00	13.00~	0.33	FF ~	~	1.0~	1.10~	~	RC ~	C2F-BL13 ~	71E01A05D27A8 ~	BLMP 1306R-M	O ~	SAI ~	02 ~	IS$$1730394793901088 ~	50.00~	0~	3~	3~	3~	6138139
