TaeguTec Cutting Tools - Metal Working Tools - Turning -

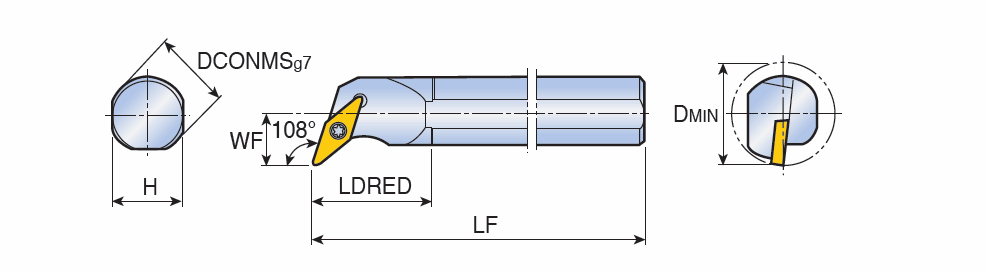

S-SVQCR/L : Screw type boring bar for positive 35° Rhombic inserts of 7° clearance angle with 108° approach angle

Right-hand shown

Designation	0rd	DCONMS	H	LF	LDRED	WF	DMIN	MIID	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	IIC	GICAT
S32T SVQCL 16	1.00~	32.00	30.0	300.00	45.0	22.00	40.00	VCGT 160408 FL	9.52~	4.76~	35~	108.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	IS$$265529092656600 ~	3604873
S32T SVQCR 16	1.00~	32.00	30.0	300.00	45.0	22.00	40.00	VCGT 160408 FL	9.52~	4.76~	35~	108.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	IS$$265529092656600 ~	3604874
S40T SVQCL 16	2.00~	40.00	37.0	300.00	55.0	27.00	50.00	VCGT 160408 FL	9.52~	4.76~	35~	108.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	IS$$265529092656600 ~	3604917
S40T SVQCR 16	2.00~	40.00	37.0	300.00	55.0	27.00	50.00	VCGT 160408 FL	9.52~	4.76~	35~	108.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	IS$$265529092656600 ~	3604918
