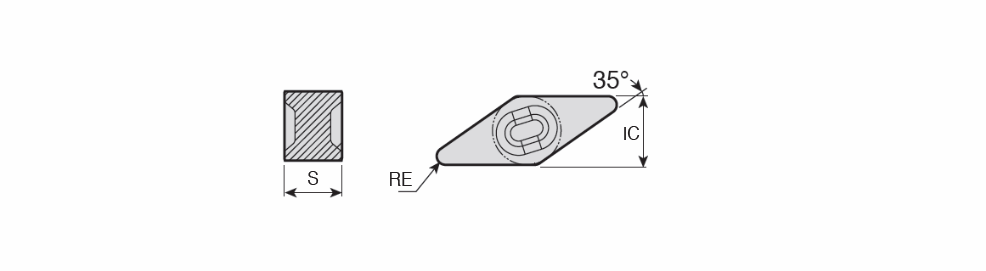

VNGX-CERAMIC : Negative 35° Rhombic ground Ceramic Dimple inserts for cast iron roughing

Designation	IC	S	RE	l	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
VNGX 160712 T7-CH	9.52	7.94	1.20	16.60~	35~	0.00~	0.05	1.50	0.05	0.20	4~	P ~	~	V ~	71DD68D301C30 ~	Ceramic ~	AS10 ~	2~	ISO$VN1607122NA$$12 ~	353 T7 ~	VNGX ~	Y ~	16 ~	5702238		1		AS10

T7: Land 0.20 x 20°
CH : Dimple type
