TaeguTec Cutting Tools - Metal Working Tools - Hole Making -

TCAP-2.25DN : Multifunction tools for drilling, boring, facing & external turning with maximum 2.25xD length & coolant holes

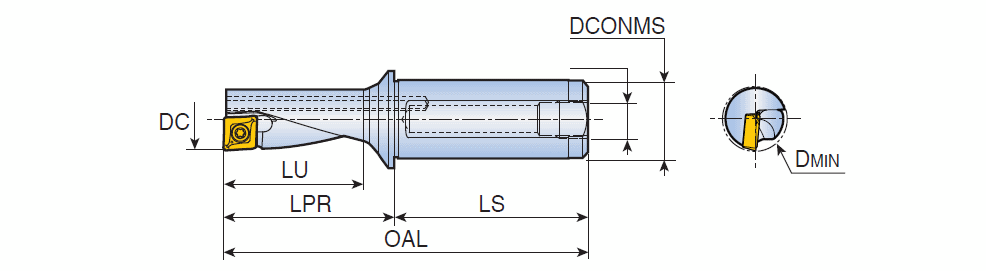

Designation	Tool sty	DC	DCONMS	LU	LPR	LS	OAL	CNT	l	S1	S2		Machines	Zeff	Shank	ClssID	MIID	CICT	ULDR	HAND	CCTMS	CCFMS	LTA	IIC	GICAT	GIREM	giic	GICODE
TCAP 08L-2.25DN	INSERT TYPE ~	8.00	12.00	18.0	22.50	42.0	64.50	G 1/16	6.40~	4.00~	1 ~	N ~	NON-ROTATING ~	1~	W ~	71E01A00BD93C ~	XCMT 040104L TC	1~	2.25~	L ~	ZYL ~	11 ~	22.50~	IS$$55114992768942 ~	3201998		0
TCAP 08R-2.25DN	INSERT TYPE ~	8.00	12.00	18.0	22.50	42.0	64.50	G 1/16	6.40~	4.00~	1 ~	N ~	NON-ROTATING ~	1~	W ~	71E01A00BD93C ~	XCMT 040104R TC	1~	2.25~	R ~	ZYL ~	11 ~	22.50~	IS$$55113221292615 ~	3201997		0
