TESB-M-13 : High feed end mills with T-FLEXTEC modular adaptation and positive SBMT 13 of 4 cutting edges in max. ap 2.0 mm

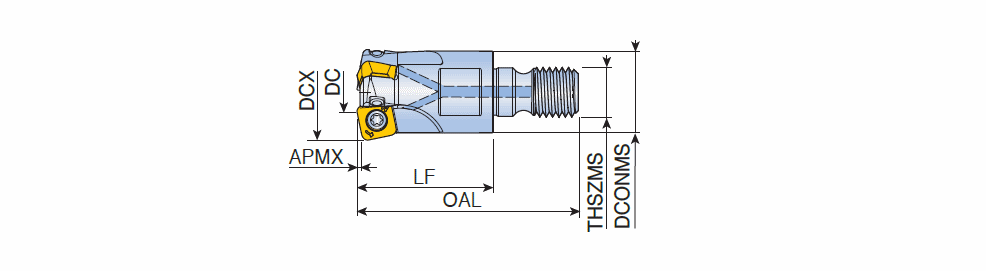

Designation	Tool sty	DCX	CICT	DC	DCONMS	LF	OAL	THSZMS	APMX	S1	HAND	RMPX	Arbor	PD		Insert	ClssID	MIID		KAPR	CCTMS	CCFMS	FF/RN	IIC	LTA	TQ_3	ZEFF	ZEFP	ZNP	GICAT
TESB 232-M16-13	MODULAR ~	32.00	2	11.60	29.00	50.00	75.00	M16	2.00	13.00~	~	7.00~	~	C ~	0.23	CF-SB13 ~	71E01A05D27A8 ~	SBMT 130625R-M	O ~	10.0~	SAI ~	02 ~	FF ~	IS$$602443421371800 ~	50.00~	0~	2~	2~	2~	6142239
TESB 233-M16-13	MODULAR ~	33.00	2	12.60	29.00	50.00	75.00	M16	2.00	13.00~	~	7.00~	~	C ~	0.23	CF-SB13 ~	71E01A05D27A8 ~	SBMT 130625R-M	O ~	10.0~	SAI ~	02 ~	FF ~	IS$$602443421371800 ~	50.00~	0~	2~	2~	2~	6142240
TESB 340-M16-13	MODULAR ~	40.00	3	19.50	29.00	50.00	75.00	M16	2.00	13.00~	~	5.30~	~	RC ~	0.24	CF-SB13 ~	71E01A05D27A8 ~	SBMT 130625R-M	O ~	10.0~	SAI ~	02 ~	FF ~	IS$$602443421371800 ~	50.00~	0~	3~	3~	3~	6142241
TESB 342-M16-13	MODULAR ~	42.00	3	21.50	29.00	50.00	75.00	M16	2.00	13.00~	~	5.30~	~	RC ~	0.26	CF-SB13 ~	71E01A05D27A8 ~	SBMT 130625R-M	O ~	10.0~	SAI ~	02 ~	FF ~	IS$$602443421371800 ~	50.00~	0~	3~	3~	3~	6142242
