TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

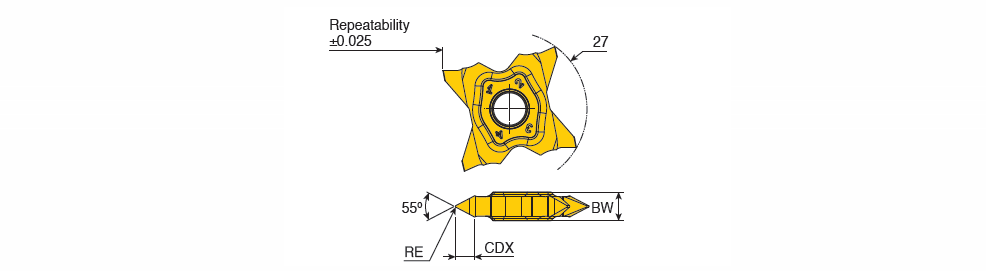

TQS 27-WT : Inserts with 4 cutting edge for Partial profile 55° of external threading

Designation	A	TPX	TPN	RE	BW	CDX	S1	SC	CB1	ClssID	HAND	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TQS 27-4WT-0.05	0.1~	54.0	10.0	0.05	4.00	2.90	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126251	1	TT9080
TQS 27-5WT-0.15	0.2~	19.0	10.0	0.15	5.00	3.30	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126252	1	TT9080
TQS 27-6WT-0.25	0.3~	12.0	9.0	0.25	6.00	3.90	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126253	1	TT9080

TPI: Thread / Inch
