Turning
Main Application

TDJNR/L-F : T-holder with 93° approach angle for negative 55° Rhombic ISO type Ceramic inserts without hole

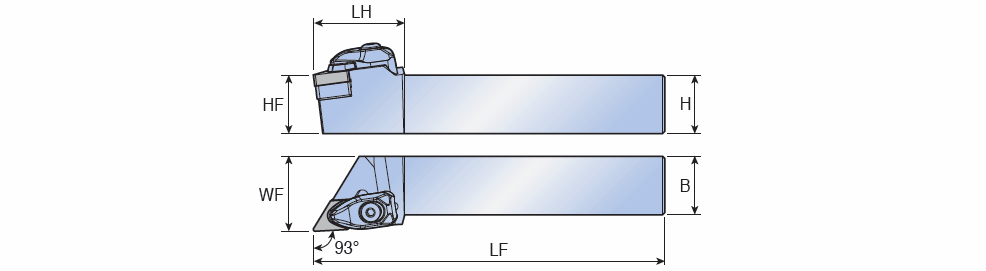

Right-hand shown

Right-hand shown

  DesignationS1 HF H B LF LH WF IC t Wtol Kr KAPR CL Tool typ HAND ClssID MIID IIC GICATGIREMgiicGICODE
  TDJNR 2525 M1504-F 15.00~25.025.025.0150.0039.032.0012.70~4.76~0.00~27~93.0~T-HOLDER (F) ~SQUARE ~R ~71E01A0E85121 ~DNGA 150408 IS$$37493063892964 ~6123158 0
  TDJNL 3232 P1507-F 15.00~32.032.032.0170.0039.040.0012.70~7.94~0.00~27~93.0~T-HOLDER (F) ~SQUARE ~L ~71E01A0E85121 ~DNGN 150708 IS$$113867752691637 ~6150553 0
  TDJNR 3232 P1507-F 15.00~32.032.032.0170.0039.040.0012.70~7.94~0.00~27~93.0~T-HOLDER (F) ~SQUARE ~R ~71E01A0E85121 ~DNGN 150708 IS$$113867752691637 ~6322531 0
