TaeguTec Cutting Tools - Metal Working Tools - Turning -

TEGNR/L-F : T-holders with 91° approach angle for negative 75° rhombic Ceramic inserts without hole

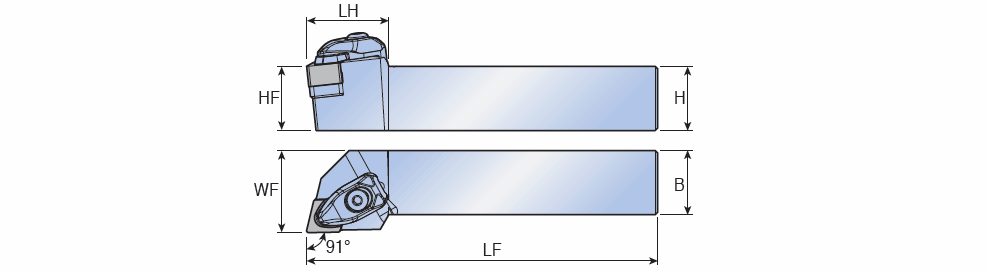

Right-hand shown

Designation	HF	H	B	LF	LH	WF	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID	IIC	GICAT	GIREM	giic	GICODE
TEGNL 2525 M1307-F	25.0	25.0	25.0	150.00	32.0	32.00	12.70~	7.94~	0~	91.0~	T-HOLDER (F) ~	SQUARE ~	L ~	71E01A0E85121 ~	ENGN 130708	IS$$152606181831120 ~	6123161		0
TEGNR 2525 M1307-F	25.0	25.0	25.0	150.00	32.0	32.00	12.70~	7.94~	0~	91.0~	T-HOLDER (F) ~	SQUARE ~	R ~	71E01A0E85121 ~	ENGN 130708	IS$$152606181831120 ~	6123160		0
