TaeguTec Cutting Tools - Metal Working Tools - Turning -

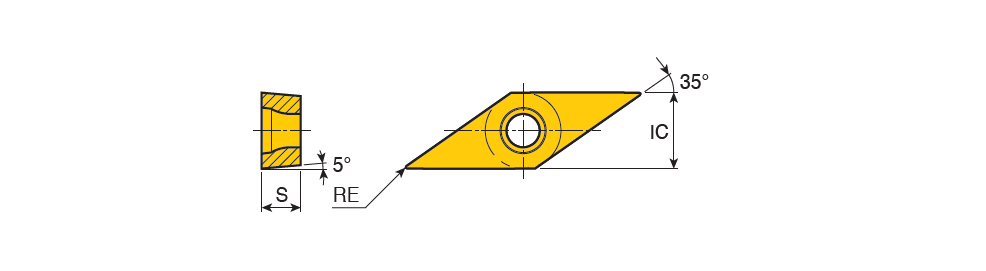

VBMT-FM : Positive 35° Rhombic inserts for medium & semi-finishing machining of steels & stainless steels with low cutting force & 5° clearance angle

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VBMT 110304 FM	6.35	3.18	0.40	0.00~	FM ~	0~	5.00~	0.50	1.50	0.08	0.20	2~	~	~	V ~	71DD68D301C30 ~	CVD ~	8125B ~	3~	ISO$VB1103043NB$$04 ~	221 FM ~	VBMT ~	Y ~	11 ~	6212837	4	TT8020 TT5100 TT8125B TT5080
VBMT 110308 FM	6.35	3.18	0.80	0.00~	FM ~	0~	5.00~	0.50	1.50	0.10	0.20	2~	~	~	V ~	71DD68D301C30 ~	CVD ~	8125B ~	3~	ISO$VB1103083NB$$08 ~	222 FM ~	VBMT ~	Y ~	11 ~	6216740	4	TT8020 TT5100 TT8125B TT5080
VBMT 160404 FM	9.52	4.76	0.40	0.00~	FM ~	0~	5.00~	0.50	2.00	0.08	0.20	2~	~	~	V ~	71DD68D301C30 ~	Cermet ~	8115B ~	3~	ISO$VB1604043NB$$04 ~	331 FM ~	VBMT ~	Y ~	16 ~	6213130	6	TT8020 TT5100 TT8125B TT5080 TT8115B CT3000
VBMT 160408 FM	9.52	4.76	0.80	0.00~	FM ~	0~	5.00~	0.80	2.00	0.10	0.20	2~	~	~	V ~	71DD68D301C30 ~	CVD ~	8115B ~	3~	ISO$VB1604083NB$$08 ~	332 FM ~	VBMT ~	Y ~	16 ~	6212872	5	TT8020 TT5100 TT8125B TT5080 TT8115B
VBMT 160412 FM	9.52	4.76	1.20	0.00~	FM ~	0~	5.00~	1.00	2.50	0.10	0.25	2~	~	~	V ~	71DD68D301C30 ~	CVD ~	8115B ~	3~	ISO$VB1604123NB$$12 ~	333 FM ~	VBMT ~	Y ~	16 ~	6246725	5	TT8020 TT5100 TT8125B TT5080 TT8115B

Click the Better Suggestions icon to see more choices.
