TaeguTec Cutting Tools - Metal Working Tools - Turning -

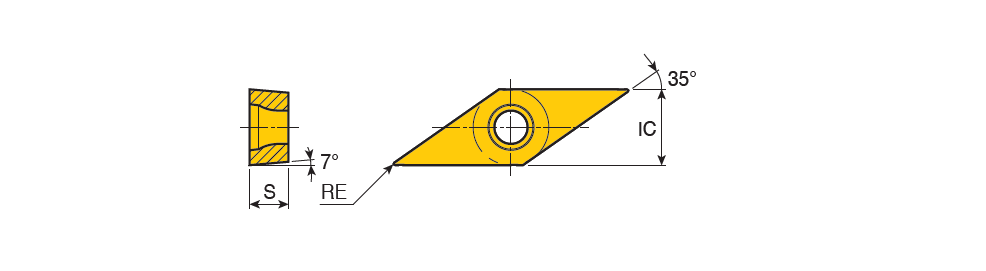

VCMT-FM : Positive 35° Rhombic inserts for medium and semi-finishing machining of steels & stainless steels with low cutting force & 7° clearance angle

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VCMT 080202 FM	4.76	2.38	0.20	0.00~	FM ~	0~	7.00~	0.50	1.50	0.07	0.15	2~	~	~	V ~	71DD68D301C30 ~	CVD ~	8125B ~	3~	ISO$VC0802023NB$$02 ~	1.51.5 ~	VCMT ~	Y ~	8 ~	6212877	4	TT8020 TT5100 TT8125B TT5080
VCMT 080204 FM	4.76	2.38	0.40	0.00~	FM ~	0~	7.00~	0.50	1.50	0.08	0.15	2~	~	~	V ~	71DD68D301C30 ~	CVD ~	8125B ~	3~	ISO$VC0802043NB$$04 ~	1.51.5 ~	VCMT ~	Y ~	8 ~	6212847	4	TT8020 TT5100 TT8125B TT5080
VCMT 110304 FM	6.35	3.18	0.40	0.00~	FM ~	0~	7.00~	0.50	1.50	0.08	0.20	2~	~	~	V ~	71DD68D301C30 ~	CVD ~	8115B ~	3~	ISO$VC1103043NB$$04 ~	221 FM ~	VCMT ~	Y ~	11 ~	6241675	4	TT8020 TT8125B TT5080 TT8115B
VCMT 160404 FM	9.52	4.76	0.40	0.00~	FM ~	0~	7.00~	0.50	2.00	0.08	0.20	2~	~	~	V ~	71DD68D301C30 ~	Cermet+PVD ~	PV3010~	3~	ISO$VC1604043NB$$04 ~	331 FM ~	VCMT ~	Y ~	16 ~	6155846	4	TT8020 TT5100 TT5080 PV3010
VCMT 160408 FM	9.52	4.76	0.80	0.00~	FM ~	0~	7.00~	0.80	2.00	0.10	0.20	2~	~	~	V ~	71DD68D301C30 ~	CVD ~	8115B ~	3~	ISO$VC1604083NB$$08 ~	332 FM ~	VCMT ~	Y ~	16 ~	6241740	4	TT8020 TT5100 TT5080 TT8115B
