TaeguTec Cutting Tools - Metal Working Tools - Turning -

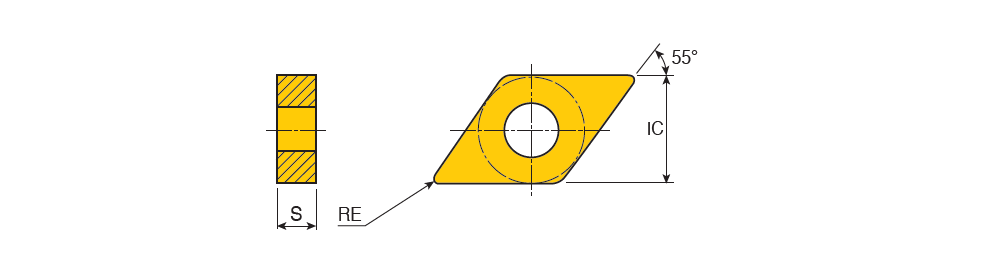

DNMG-MP : Negative 55° Rhombic inserts for medium machining of steels & stainless steels

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DNMG 150404 MP	12.70	4.76	0.40	15.50~	MP ~	55~	0.00~	0.80	4.00	0.10	0.30	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$DN1504042NB$$04 ~	431 MP ~	DNMG ~	Y ~	15 ~	6241931		6	TT8020 TT9225 TT5100 TT5080 TT9215 TT8115B
DNMG 150408 MP	12.70	4.76	0.80	15.50~	MP ~	55~	0.00~	1.00	4.00	0.12	0.40	4~	~	U ~	D ~	~	CVD ~	8115B ~	2~	ISO$DN1504082NB$$08 ~	432 MP ~	DNMG ~	Y ~	~	6241767		8	TT8020 TT9235 TT9225 TT5100 TT8125B TT5080 TT9215 TT8115B
DNMG 150604 MP	12.70	6.35	0.40	15.50~	MP ~	55~	0.00~	0.80	4.00	0.10	0.30	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8125B ~	2~	ISO$DN1506042NB$$04 ~	441 MP ~	DNMG ~	Y ~	15 ~	6212388		5	TT9235 TT9225 TT5100 TT8125B TT5080
DNMG 150608 MP	12.70	6.35	0.80	15.50~	MP ~	55~	0.00~	1.00	4.00	0.12	0.40	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$DN1506082NB$$08 ~	150608 ~	DNMG ~	Y ~	15 ~	6245119		8	TT8020 TT9235 TT9080 TT9225 TT5100 TT5080 TT9215 TT8115B
DNMG 150612 MP	12.70	6.35	1.20	15.50~	MP ~	55~	0.00~	1.00	4.00	0.15	0.40	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	TT5080~	2~	ISO$DN1506122NB$$12 ~	443 MP ~	DNMG ~	Y ~	15 ~	5523085	Type B chip breaker	4	TT9235 TT9225 TT5080 TT9215
