TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

7S-E45-06 : 45° End mills with positive 7 cutting edged inserts & less cutting forces for small machines

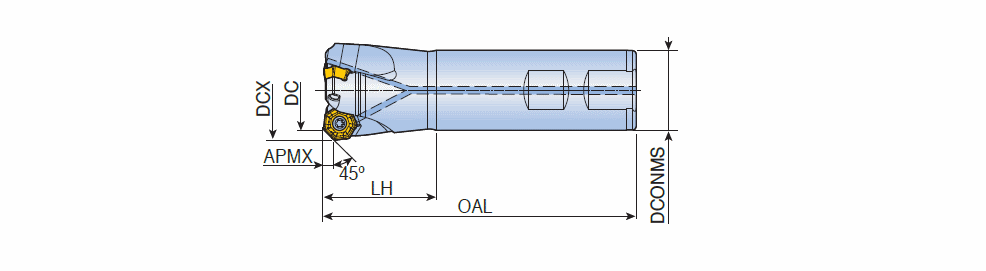

Designation	Tool sty	DCX	DC	CICT	DCONMS	OAL	LH	APMX		S1	Shank	RMPX	Insert		KAPR	HAND	Arbor	PD	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
7S-E45 232P-W32-06	ENDMILL ~	32.00	23.70	2	32.00	125.00	45.00	3.20	O	6.00~	W ~	25.00~	CH-7E06 ~	0.67	45.0~	~	~	C ~	71E01A05D27A8 ~	7EMT 0604 AETR-M	ZYL ~	10 ~	IS$$491009233821407 ~	65.00~	2~	2~	2~	6147108
7S-E45 340P-W32-06	ENDMILL ~	40.00	31.60	3	32.00	125.00	45.00	3.20	O	6.00~	W ~	15.50~	CH-7E06 ~	0.72	45.0~	~	~	RC ~	71E01A05D27A8 ~	7EMT 0604 AETR-M	ZYL ~	10 ~	IS$$491009233821407 ~	65.00~	3~	3~	3~	6147109
7S-E45 450P-W32-06	ENDMILL ~	50.00	41.50	4	32.00	125.00	45.00	3.20	O	6.00~	W ~	9.50~	CH-7E06 ~	0.82	45.0~	~	~	RC ~	71E01A05D27A8 ~	7EMT 0604 AETR-M	ZYL ~	10 ~	IS$$491009233821407 ~	65.00~	4~	4~	4~	6147110
