TaeguTec Cutting Tools - Metal Working Tools - Turning -

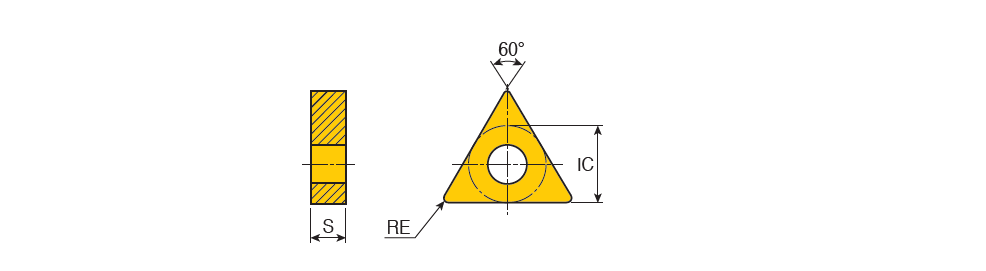

TNMG-WA (RHINO) : Negative 60° Triangular RHINOTURN Wiper inserts for high feed rate and excellent surface finishing

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMG 130404 WA	7.94	4.76	0.40	WA ~	0~	0.00~	0.25	2.50	0.08	0.25	6~	~	~	0.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	Cermet ~	8105B ~	2~	ISO$TN1304042NB$$04 ~	2.531 ~	TNMG ~	Y ~	~	6249171	3	TT8125B TT8115B TT8105B
TNMG 130408 WA	7.94	4.76	0.80	WA ~	0~	0.00~	0.25	3.00	0.10	0.35	6~	~	~	0.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$TN1304082NB$$08 ~	2.532 ~	TNMG ~	Y ~	13 ~	6241460	2	TT8125B TT8115B
TNMG 130412 WA	7.94	4.76	1.20	WA ~	0~	0.00~	0.40	3.50	0.15	0.45	6~	~	~	0.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	8105B ~	2~	ISO$TN1304122NB$$12 ~	2.533 ~	TNMG ~	Y ~	13 ~	6258478	3	TT8115B TT8105B TT7005

For T(H)TFNR/L, T(H,W)TGNR/L & A/S-T(H,S,W)TFNR/L
