TaeguTec Cutting Tools - Metal Working Tools - Turning -

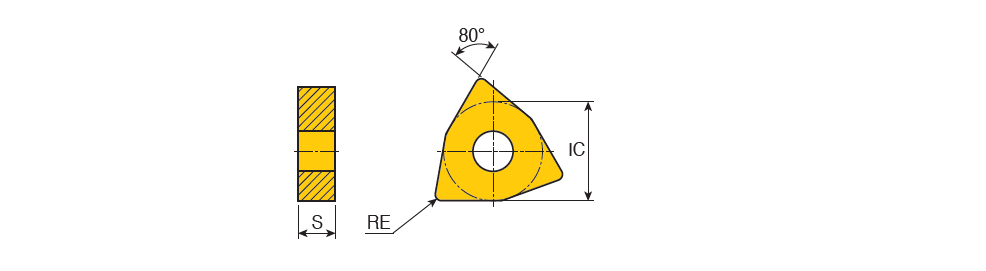

WNMX-WA (RHINO) : Negative 80° Trigon RHINOTURN Wiper inserts for high feed rate and excellent surface finishing

Designation	IC	S	RE	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	CBMD	AN	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMX 060404 WA	9.52	4.76	0.40	0.25	2.50	0.08	0.25	6~	~	~	0.00~	W ~	71DD68D73218C ~	WA ~	0.00~	RHINO-TURN ~	CVD ~	TT7005~	2~	ISO$WN0604042NA$$04 ~	331 WA ~	WNMX ~	Y ~	6 ~	6169823	2	TT7015 TT7005
WNMX 060408 WA	9.52	4.76	0.80	0.25	3.00	0.10	0.40	6~	~	~	0.00~	W ~	71DD68D73218C ~	WA ~	0.00~	RHINO-TURN ~	CVD ~	8105B ~	2~	ISO$WN0604082NA$$08 ~	332 WA ~	WNMX ~	Y ~	~	6241930	3	TT8125B TT8115B TT8105B
WNMX 060412 WA	9.52	4.76	1.20	0.40	3.00	0.20	0.50	6~	~	~	0.00~	W ~	71DD68D73218C ~	WA ~	0.00~	RHINO-TURN ~	CVD ~	8105B ~	2~	ISO$WN0604122NA$$12 ~	333 WA ~	WNMX ~	Y ~	~	6237700	3	TT8125B TT8115B TT8105B
