TaeguTec Cutting Tools - Metal Working Tools - Turning -

DPET R/L-GF : Precision positive ground 55° Rhombic inserts with sharp high rake cutting edge for small parts super finishing of steel, stainless steels & alloy steel

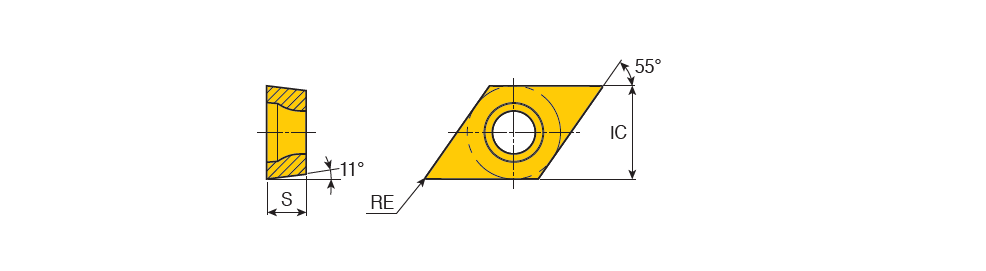

Right hand shown

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	HAND	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Grade & Vc Click on grade for cutting speed value
DPET 070201 R-GF	6.35	2.38	0.10	0.00~	GF ~	55~	11.00~	0.20	1.50	0.02	0.15	2~	P ~	~	D ~	R ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$DP0702013RB$$01 ~	21.50 ~	DPET ~	Y ~	6136492	1	TT9020
DPET 070202 L-GF	6.35	2.38	0.20	0.00~	GF ~	55~	11.00~	0.30	1.50	0.03	0.17	2~	P ~	~	D ~	L ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$DP0702023LB$$02 ~	21.50. ~	DPET ~	Y ~	6136493	1	TT9020
DPET 070202 R-GF	6.35	2.38	0.20	0.00~	GF ~	55~	11.00~	0.30	1.50	0.03	0.17	2~	P ~	~	D ~	R ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$DP0702023RB$$02 ~	21.50. ~	DPET ~	Y ~	6136494	1	TT9020
DPET 11T301 L-GF	9.52	3.97	0.10	0.00~	GF ~	55~	11.00~	0.20	2.50	0.02	0.15	2~	P ~	~	D ~	L ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$DP11T3013LB$$01 ~	32.50 ~	DPET ~	Y ~	6136497	1	TT9020
DPET 11T301 R-GF	9.52	3.97	0.10	0.00~	GF ~	55~	11.00~	0.20	2.50	0.02	0.15	2~	P ~	~	D ~	R ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$DP11T3013RB$$01 ~	32.50 ~	DPET ~	Y ~	5523260	1	TT9020
DPET 11T302 L-GF	9.52	3.97	0.20	0.00~	GF ~	55~	11.00~	0.30	2.50	0.03	0.17	2~	P ~	~	D ~	L ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$DP11T3023LB$$02 ~	32.50. ~	DPET ~	Y ~	6136499	1	TT9020
DPET 11T302 R-GF	9.52	3.97	0.20	0.00~	GF ~	55~	11.00~	0.30	2.50	0.03	0.17	2~	P ~	~	D ~	R ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$DP11T3023RB$$02 ~	32.50. ~	DPET ~	Y ~	5523259	1	TT9020
