TaeguTec Cutting Tools - Metal Working Tools - Turning -

DPGT R/L-FF : Positive ground 55° Rhombic inserts with ground chip former for finish to medium machining of small components

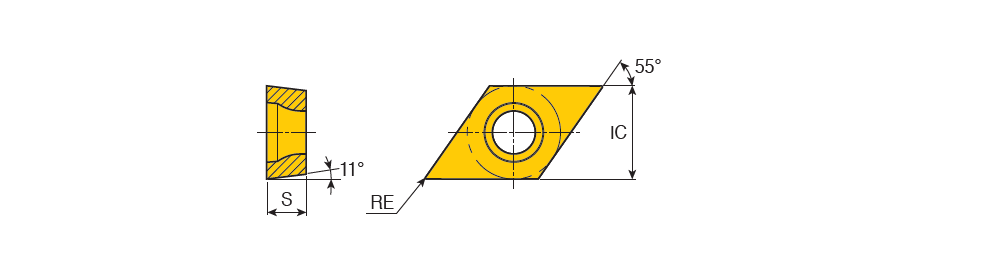

Left hand shown

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	HAND	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Grade & Vc Click on grade for cutting speed value
DPGT 070202 L-FF	6.35	2.38	0.20	0.00~	FF ~	55~	11.00~	0.10	0.40	0.03	0.15	2~	P ~	~	D ~	L ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$DP0702023LB$$02 ~	21.50. ~	DPGT ~	Y ~	6136344	1	TT9020
DPGT 070202 R-FF	6.35	2.38	0.20	0.00~	FF ~	55~	11.00~	0.10	0.40	0.03	0.15	2~	P ~	~	D ~	R ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$DP0702023RB$$02 ~	21.50. ~	DPGT ~	Y ~	6136345	1	TT9020
DPGT 11T3003 R-FF	9.52	3.97	0.03	0.00~	FF ~	55~	11.00~	0.05	0.40	0.03	0.10	2~	P ~	~	D ~	R ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$DP11T3003RB$$00 ~	32.5X0 ~	DPGT ~	Y ~	6136347	1	TT9020
DPGT 11T302 L-FF	9.52	3.97	0.20	0.00~	FF ~	55~	11.00~	0.10	0.50	0.03	0.15	2~	P ~	~	D ~	L ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$DP11T3023LB$$02 ~	32.50. ~	DPGT ~	Y ~	6136350	1	TT9020
DPGT 11T302 R-FF	9.52	3.97	0.20	0.00~	FF ~	55~	11.00~	0.10	0.50	0.03	0.15	2~	P ~	~	D ~	R ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$DP11T3023RB$$02 ~	32.50. ~	DPGT ~	Y ~	6136351	1	TT9020
