TaeguTec Cutting Tools - Metal Working Tools - Turning -

TPET R/L-GF : Precision positive ground Triangular inserts with sharp high rake cutting edge for super finishing of small parts made in steels, stainless steels & alloy steels

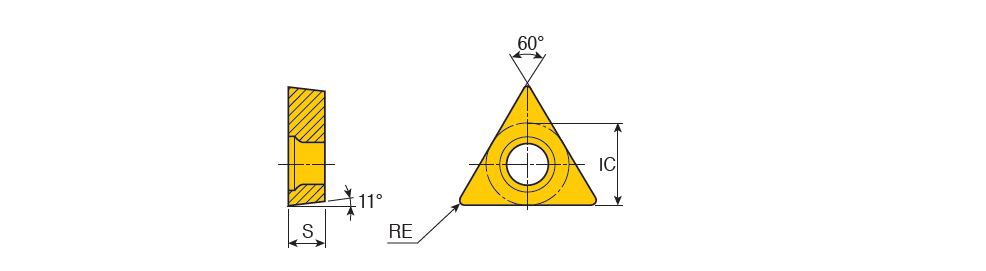

Right hand shown

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	HAND	S1	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TPET 080201 L-GF	4.76	2.38	0.10	0.00~	GF ~	60~	11.00~	0.20	1.50	0.02	0.15	3~	P ~	~	T ~	L ~	802.00~	71DD68D8446CE ~	PVD ~	TT9020~	3~	ISO$TP0802013LB$$01 ~	630 L- ~	TPET ~	Y ~	6136514	1	TT9020
TPET 080201 R-GF	4.76	2.38	0.10	0.00~	GF ~	60~	11.00~	0.20	1.50	0.02	0.15	3~	P ~	~	T ~	R ~	802.00~	71DD68D8446CE ~	PVD ~	TT9020~	3~	ISO$TP0802013RB$$01 ~	630 R- ~	TPET ~	Y ~	6136515	1	TT9020
TPET 080202 L-GF	4.76	2.38	0.20	0.00~	GF ~	60~	11.00~	0.30	1.50	0.03	0.17	3~	P ~	~	T ~	L ~	802.00~	71DD68D8446CE ~	PVD ~	TT9020~	3~	ISO$TP0802023LB$$02 ~	630.5 ~	TPET ~	Y ~	6136516	1	TT9020
TPET 080202 R-GF	4.76	2.38	0.20	0.00~	GF ~	60~	11.00~	0.30	1.50	0.03	0.17	3~	P ~	~	T ~	R ~	802.00~	71DD68D8446CE ~	PVD ~	TT9020~	3~	ISO$TP0802023RB$$02 ~	630.5 ~	TPET ~	Y ~	6136517	1	TT9020
TPET 110301 L-GF	6.35	3.18	0.10	0.00~	GF ~	60~	11.00~	0.20	1.50	0.02	0.15	3~	P ~	~	T ~	L ~	1103.00~	71DD68D8446CE ~	PVD ~	TT9020~	3~	ISO$TP1103013LB$$01 ~	220 L- ~	TPET ~	Y ~	6136522	1	TT9020
TPET 110302 L-GF	6.35	3.18	0.20	0.00~	GF ~	60~	11.00~	0.30	1.50	0.03	0.17	3~	P ~	~	T ~	L ~	1103.00~	71DD68D8446CE ~	PVD ~	TT9020~	3~	ISO$TP1103023LB$$02 ~	220.5 ~	TPET ~	Y ~	6136524	1	TT9020
TPET 110302 R-GF	6.35	3.18	0.20	0.00~	GF ~	60~	11.00~	0.30	1.50	0.03	0.17	3~	P ~	~	T ~	R ~	1103.00~	71DD68D8446CE ~	PVD ~	TT9020~	3~	ISO$TP1103023RB$$02 ~	220.5 ~	TPET ~	Y ~	6136525	1	TT9020
