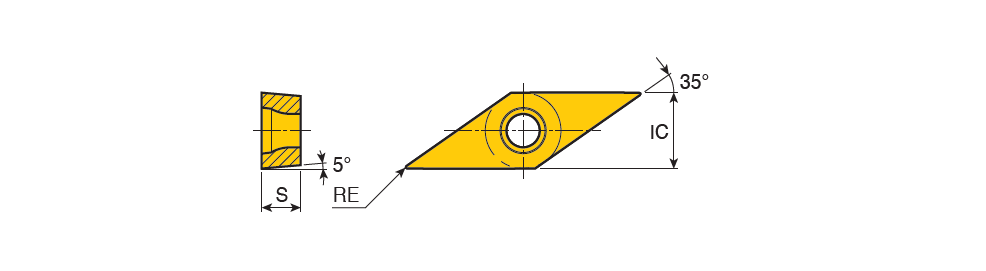

VBGT R/L-FF : Positive ground 35° Rhombic inserts with ground chip former for finish to medium machining of small components

Left hand shown

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	HAND	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VBGT 110301 L-FF	6.35	3.18	0.10	0.00~	FF ~	0~	5.00~	0.10	0.50	0.03	0.12	2~	~	~	V ~	L ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$VB1103013LB$$01 ~	220 L- ~	VBGT ~	Y ~	6136374	1	TT9020
VBGT 110301 R-FF	6.35	3.18	0.10	0.00~	FF ~	0~	5.00~	0.10	0.50	0.03	0.12	2~	~	~	V ~	R ~	71DD68D301C30 ~	Cermet ~	CT3000~	3~	ISO$VB1103013RB$$01 ~	220 R- ~	VBGT ~	Y ~	6136375	2	TT9020 CT3000
VBGT 110302 L-FF	6.35	3.18	0.20	0.00~	FF ~	0~	5.00~	0.10	0.50	0.03	0.15	2~	~	~	V ~	L ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$VB1103023LB$$02 ~	220.5 ~	VBGT ~	Y ~	6136376	1	TT9020
VBGT 110302 R-FF	6.35	3.18	0.20	0.00~	FF ~	0~	5.00~	0.10	0.50	0.03	0.15	2~	~	~	V ~	R ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$VB1103023RB$$02 ~	220.5 ~	VBGT ~	Y ~	6136377	1	TT9020
