TaeguTec Cutting Tools - Metal Working Tools - Turning -

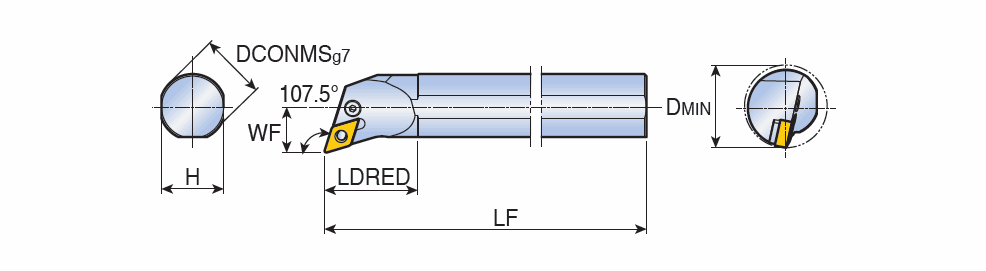

S-HDQNR/L (RHINO) : Hook lever RHINOTURN boring bars for DN.. 1305 inserts with 107.5° approach angle

Right-hand shown

Designation	DCONMS	H	LF	LDRED	WF	DMIN	IC	t	Kr	KAPR	CL	Tool typ	HAND	S2	ClssID	MIID	IIC	IIC_2	GICAT	GIREM	giic	GICODE
S32S HDQNL 1305	32.00	30.0	250.00	45.0	22.00	40.00	11.11~	5.56~	15~	108.0~	HOOK LEVER ~	BORING BAR ~	L ~	R ~	71E01A0E9CBA9 ~	DNMG 130508 PC	IS$$2001615641700060 ~	IS$$899759615292330 ~	6124779		0
S32S HDQNR 1305	32.00	30.0	250.00	45.0	22.00	40.00	11.11~	5.56~	15~	108.0~	HOOK LEVER ~	BORING BAR ~	R ~	L ~	71E01A0E9CBA9 ~	DNMG 130508 PC	IS$$2001615641700060 ~	IS$$899773775059392 ~	6124778		0
