TaeguTec Cutting Tools - Metal Working Tools - Turning -

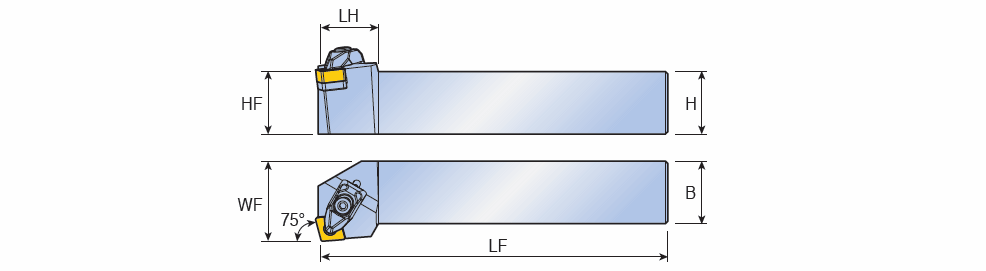

TCKNR/L... : T-holders with 75° approach angle for negative 80° Rhombic inserts using 100° corner for facing

Right-hand shown

Designation	HF	H	B	LF	LH	WF	MIID	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	IIC	IIC_2	GICAT	GIREM	giic	GICODE
TCKNL 2525 M12	25.0	25.0	25.0	150.00	25.0	32.00	CNGA 120408	12.70~	4.76~	75~	0.0~	T-HOLDER ~	SQUARE ~	L ~	71E01A0E85121 ~	IS$$1024254928735500 ~	IS$$799486238534200 ~	3603352		0
TCKNR 2525 M12	25.0	25.0	25.0	150.00	25.0	32.00	CNGA 120408	12.70~	4.76~	75~	0.0~	T-HOLDER ~	SQUARE ~	R ~	71E01A0E85121 ~	IS$$1024254928735500 ~	IS$$799486238534200 ~	3603351		0
