TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

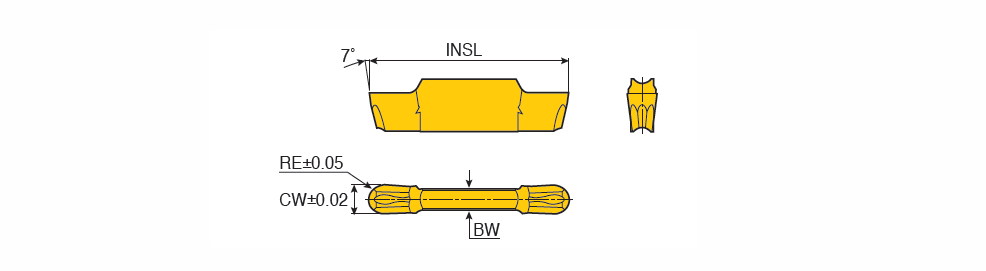

TDIT-E (Full radius) : Precision double-ended Inserts for Internal Turning, Grooving, Profiling and Undercutting

Designation	SSC	CW	RE	BW	INSL	h	S1	S2	SC	R	ap (max)	ft (min)	ft (max)	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	HAND	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TDIT 3.00E-1.50	3	3.00	1.50	2.2	20.00	4.7~	3.00~	3.00000 ~	L ~	0.050~	1.50	0.15	0.28	0.08	0.18	P4E ~	3.00~	0.02~	71DDA089C8D1E ~	N ~	2~	CVD ~	T ~	K10 ~	IS$$503272032649336 ~	6400661	3	TT7220 TT5100 K10
TDIT 4.00E-2.00	4	4.00	2.00	3.0	20.00	4.7~	0.00~	~	L ~	0.050~	2.00	0.18	0.35	0.10	0.20	P4E ~	4.00~	0.02~	71DDA089C8D1E ~	N ~	2~	CVD ~	T ~	K10 ~	IS$$371145986733762 ~	6400669	3	TT7220 TT5100 K10
TDIT 5.00E-2.50	5	5.00	2.50	4.0	25.00	5.2~	0.00~	~	L ~	0.050~	2.50	0.20	0.42	0.12	0.23	P4E ~	5.00~	0.02~	71DDA089C8D1E ~	N ~	2~	CVD ~	T ~	K10 ~	IS$$173467511686770 ~	6400678	3	TT7220 TT5100 K10
TDIT 6.00E-3.00	6	6.00	3.00	5.0	25.00	5.2~	6.00~	6.00000 ~	L ~	0.050~	3.00	0.25	0.54	0.15	0.27	P4E ~	6.00~	0.02~	71DDA089C8D1E ~	N ~	2~	CVD ~	T ~	TT5100~	IS$$138490506817870 ~	6400684	2	TT7220 TT5100
