TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

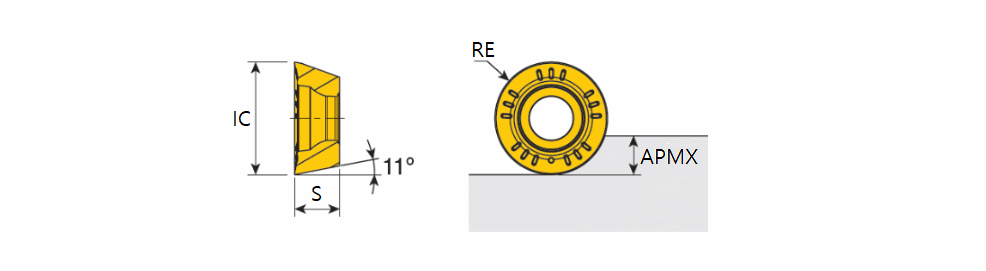

RTMX 10/12-5ML : Round inserts with 5 indexing bottom & strong cutting edges dedicated for stainless steels and difficult-to-cut materials in power generation and aerospace industries

Available upon request: TT8515,TT3540 & TT9540

Designation	IC	S	RE	APMX	S1	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	CEDC	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RTMX 1004-5ML	10.00	4.00	5.00	3.30	10.00~	CM-RT10 ~	1.50	3.30	0.300	0.050	~	R ~	71D1AA6635E76 ~	5~	U40 ~	ML ~	TT8080~	IS$$189967084805677 ~	RTMX 10 ~	0~	6164708		2		TT8080 TT9080
RTMX 1205-5ML	12.00	4.80	6.00	4.00	12.00~	CM-RT12 ~	1.50	4.00	0.350	0.050	~	R ~	71D1AA6635E76 ~	5~	U40 ~	ML ~	TT8080~	IS$$492309200403801 ~	RTMX 12 ~	0~	6147679		1		TT8080

RTHX 08 mm inserts are available upon request as tailor-made item.
