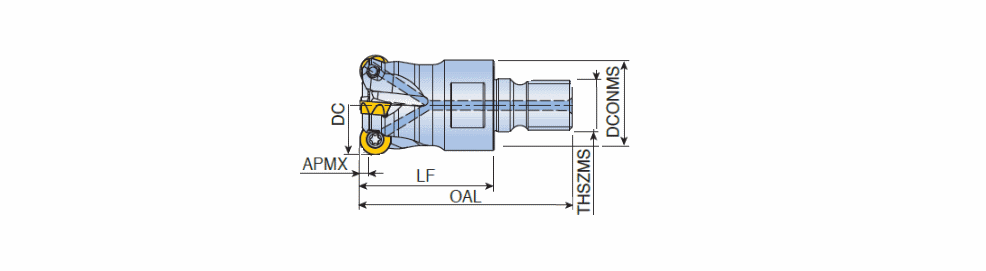

TERT-M-10/12 : Modular end mills with T-FLEXTEC adaptation & RTM(H)X inserts of five-indexing bottom for exotic materials

Designation	Tool sty	S1	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX			RE	KAPR	Arbor	PD	Insert	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	TQ_3	ZEFF	ZEFP	ZNP	GICAT	GIREM	giic	GICODE
TERT 325-M12-10	MODULAR ~	10.00~	25.00	3	21.00	35.00	57.00	M12	5.00	0.10	O ~	5.00~	3.0~	~	RC ~	~	71E01A05D27A8 ~	RTMX 1004-5MM	SAI ~	02 ~	IS$$189967084805677 ~	35.00~	0~	3~	3~	3~	6176517		0
