TFMRT-R-10/12 : Face mills with RTM(H)X inserts of five-indexing bottom for stainless steel and difficult-to-cut materials machining in power generation and aerospace industries

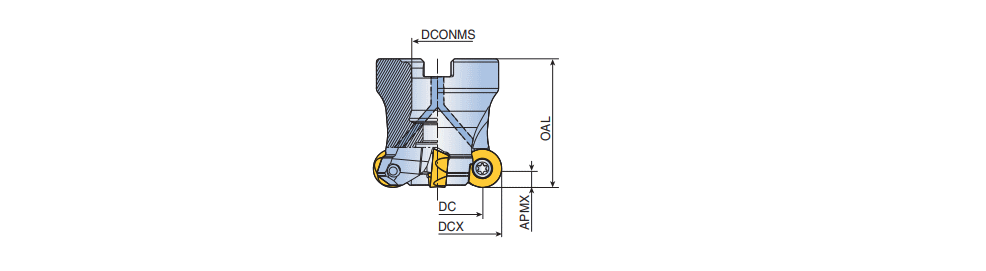

Designation	Tool sty	S1	DC	DCX	CICT	DCONMS	OAL	APMX	Arbor		Mtg. Ref	D3	HAND	KAPR	PD	Insert	ClssID	MIID		RE	FF/RN	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
TFMRT 540-16R-10	FACE MILL ~	10.00~	30.10	40.00	5	16.00	40.00	5.00	A	0.20	SH M8x1.25x30	0.00~	~	3.0~	F ~	CM-RT10 ~	71E01A05B627B ~	RTMX 1004-5MM	O ~	5.00~	RN ~	IS$$189967084805677 ~	40.00~	5~	5~	5~	6176519
TFMRT 640-16R-10	FACE MILL ~	10.00~	30.20	40.00	6	16.00	40.00	5.00	A	0.20	SH M8x1.25x30	0.00~	~	3.0~	XF ~	CM-RT10 ~	71E01A05B627B ~	RTMX 1004-5MM	O ~	5.00~	RN ~	IS$$189967084805677 ~	40.00~	6~	6~	6~	6176520
TFMRT 440-16R-12	FACE MILL ~	12.00~	28.20	40.00	4	16.00	40.00	6.00	A	0.20	SH M8x1.25x30	0.00~	~	3.0~	RF ~	CM-RT12 ~	71E01A05B627B ~	RTMX 1205-5MM	O ~	6.00~	RN ~	IS$$492309200403801 ~	40.00~	4~	4~	4~	6147669
TFMRT 540-16R-12	FACE MILL ~	12.00~	28.20	40.00	5	16.00	40.00	6.00	A	0.20	SH M8x1.25x30	0.00~	~	3.0~	F ~	CM-RT12 ~	71E01A05B627B ~	RTMX 1205-5MM	O ~	6.00~	RN ~	IS$$492309200403801 ~	40.00~	5~	5~	5~	6164679
TFMRT 550-22R-12	FACE MILL ~	12.00~	38.20	50.00	5	22.00	40.00	6.00	A	0.30	LH M10x1.5x25	0.00~	~	3.0~	RF ~	CM-RT12 ~	71E01A05B627B ~	RTMX 1205-5MM	O ~	6.00~	RN ~	IS$$492309200403801 ~	40.00~	5~	5~	5~	6147671
TFMRT 552-22R-12	FACE MILL ~	12.00~	40.20	52.00	5	22.00	40.00	6.00	A	0.30	LH M10x1.5x25	0.00~	~	3.0~	RF ~	CM-RT12 ~	71E01A05B627B ~	RTMX 1205-5MM	O ~	6.00~	RN ~	IS$$492309200403801 ~	40.00~	5~	5~	5~	6173780
TFMRT 650-22R-12	FACE MILL ~	12.00~	38.20	50.00	6	22.00	40.00	6.00	A	0.30	LH M10x1.5x25	0.00~	~	3.0~	RF ~	CM-RT12 ~	71E01A05B627B ~	RTMX 1205-5MM	O ~	6.00~	RN ~	IS$$492309200403801 ~	40.00~	6~	6~	6~	6164124
TFMRT 652-22R-12	FACE MILL ~	12.00~	40.20	52.00	6	22.00	40.00	6.00	A	0.30	LH M10x1.5x25	0.00~	~	3.0~	RF ~	CM-RT12 ~	71E01A05B627B ~	RTMX 1205-5MM	O ~	6.00~	RN ~	IS$$492309200403801 ~	40.00~	6~	6~	6~	6176521
TFMRT 663-22R-12	FACE MILL ~	12.00~	51.20	63.00	6	22.00	40.00	6.00	A	0.60	LH M10x1.5x25	0.00~	~	3.0~	RF ~	CM-RT12 ~	71E01A05B627B ~	RTMX 1205-5MM	O ~	6.00~	RN ~	IS$$492309200403801 ~	40.00~	6~	6~	6~	6147672
TFMRT 780-27R-12	FACE MILL ~	12.00~	68.20	80.00	7	27.00	50.00	6.00	A	0.90	LH M12x1.75x30	0.00~	~	3.0~	RF ~	CM-RT12 ~	71E01A05B627B ~	RTMX 1205-5MM	O ~	6.00~	RN ~	IS$$492309200403801 ~	50.00~	7~	7~	7~	6147674
TFMRT 880-27R-12	FACE MILL ~	12.00~	68.20	80.00	8	27.00	50.00	6.00	A	0.90	LH M12x1.75x30	0.00~	~	3.0~	RF ~	CM-RT12 ~	71E01A05B627B ~	RTMX 1205-5MM	O ~	6.00~	RN ~	IS$$492309200403801 ~	50.00~	8~	8~	8~	6147675

Mounting bolt with coolant through hole is available on request (ordering example: SH M8x1.25x30-C)
