APCT 1204-PCD35 : Single PCD tipped inserts for machining of aluminum and composite materials on AP 12 insert

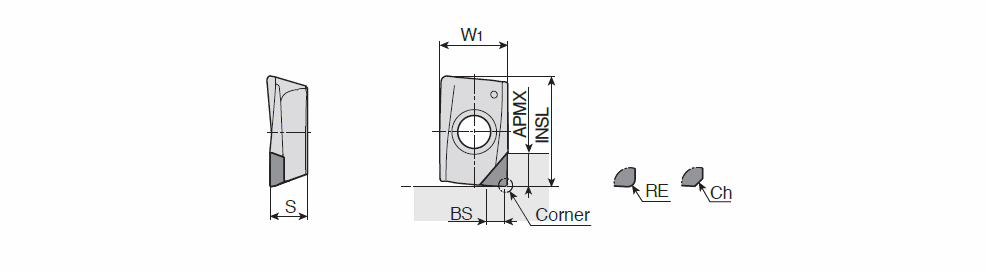

Designation	INSL	W1	S	APMX	BS	RE	ch	S1	S2	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	COATP	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
APCT 1204C025-PCD35	13.30	8.20	4.50	3.50	2.10	-	0.25	12.00~	~	1~	~	0.20	3.00	0.300	0.050	~	A ~	71DD68D91938A ~	P10 ~	PCD ~	TD1030~	IS$$633351170470156 ~	APCT 12 ~	0~	6265074		1		TD1030
APCT 120404R-PCD35	13.30	8.20	4.50	3.50	2.00	0.40	0.00	12.00~	~	1~	~	0.20	3.00	0.300	0.050	~	A ~	71DD68D91938A ~	P10 ~	PCD ~	TD1030~	IS$$633351170470156 ~	APCT 12 ~	0~	6265073		1		TD1030
