TaeguTec Cutting Tools - Metal Working Tools - Turning -

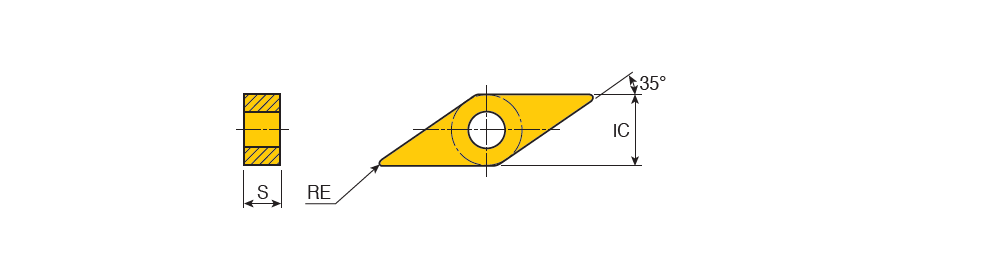

VNGX-ML (RHINO) : Negative ground 35° Rhombic RHINOTURN inserts for machining of aluminum & exotic materials

Designation	IC	S	RE	ap (min)	ap (max)	ft (min)	ft (max)	l	CBMD	alpha	AN	CEDC	Precise	Utility	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VNGX 130401 ML	7.94	4.76	0.10	0.10	1.00	0.03	0.10	16.60~	ML ~	0~	0.00~	4~	~	~	V ~	71DD68D301C30 ~	RHINO-TURN ~	PVD ~	K10 ~	2~	ISO$VN1304012NA$$01 ~	2.530 ~	VNGX ~	Y ~	13 ~	6174454	2	TT5080 K10
VNGX 130402 ML	7.94	4.76	0.20	0.20	1.20	0.05	0.15	16.60~	ML ~	0~	0.00~	4~	~	~	V ~	71DD68D301C30 ~	RHINO-TURN ~	PVD ~	K10 ~	2~	ISO$VN1304022NA$$02 ~	2.530. ~	VNGX ~	Y ~	13 ~	6174455	2	TT5080 K10
VNGX 130404 ML	7.94	4.76	0.40	0.50	1.50	0.05	0.20	16.60~	ML ~	0~	0.00~	4~	~	~	V ~	71DD68D301C30 ~	RHINO-TURN ~	PVD ~	K10 ~	2~	ISO$VN1304042NA$$04 ~	2.531 ~	VNGX ~	Y ~	13 ~	6174456	2	TT5080 K10
