SDJCR/L-SH-TB : Screw type high pressure coolant holders with 93° approach angle & 55° DC.T positive inserts for Swiss type automatic lathes

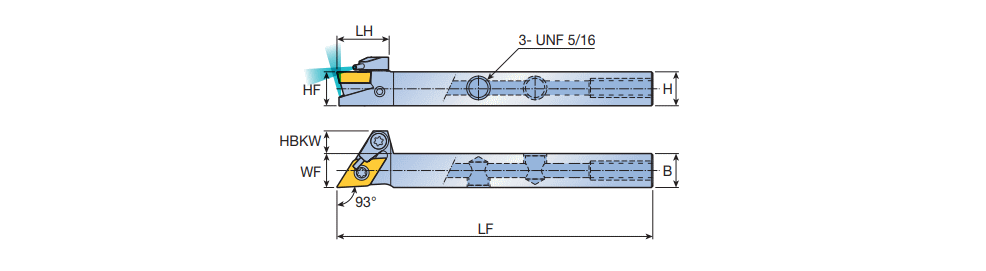

Right-hand shown
Coolant pressure: recommended 70 bar, max. up to 140 bar

Right-hand shown
Coolant pressure: recommended 70 bar, max. up to 140 bar

 COOLANT_COOLBURST
  DesignationHF H B LF LH WF HBKW IC t Kr KAPR CL Tool typ HAND ClssID MIID  IIC IIC_2 IIC_3 IIC_4 GICATGIREMgiicGICODE
  SDJCL 1212 K11-SH-TB 12.012.012.0125.0019.012.008.09.52~3.97~27~93.0~SCREW-SH-TB ~SQUARE ~L ~71E01A0E85121 ~DCMT 11T302 FA O ~IS$$1010370168438665 ~IS$$1023930991875314 ~IS$$1429709850404096 ~IS$$1519702245489130 ~6165908 0
  SDJCR 1212 K11-SH-TB 12.012.012.0125.0019.012.008.09.52~3.97~27~93.0~SCREW-SH-TB ~SQUARE ~R ~71E01A0E85121 ~DCMT 11T302 FA O ~IS$$1023930991875314 ~IS$$1161173142749010 ~IS$$1429709850404096 ~IS$$1519702245489130 ~6165910 0
  SDJCL 1616 K11-SH-TB 16.016.016.0125.0019.016.004.09.52~3.97~27~93.0~SCREW-SH-TB ~SQUARE ~L ~71E01A0E85121 ~DCMT 11T302 FA O ~IS$$1010370168438665 ~IS$$1023930991875314 ~IS$$1429709850404096 ~IS$$1519702245489130 ~6165909 0
  SDJCR 1616 K11-SH-TB 16.016.016.0125.0019.016.004.09.52~3.97~27~93.0~SCREW-SH-TB ~SQUARE ~R ~71E01A0E85121 ~DCMT 11T302 FA O ~IS$$1023930991875314 ~IS$$1161173142749010 ~IS$$1429709850404096 ~IS$$1519702245489130 ~6165911 0
  SDJCR 2020 K11-SH-TB 20.020.020.0125.0020.020.00-9.52~3.97~27~93.0~SCREW-SH-TB ~SQUARE ~R ~71E01A0E85121 ~DCMT 11T302 FA O ~IS$$1023930991875314 ~IS$$1161173142749010 ~IS$$1429709850404096 ~IS$$1519702245489130 ~6302781 0
