TaeguTec Cutting Tools - Metal Working Tools - Turning -

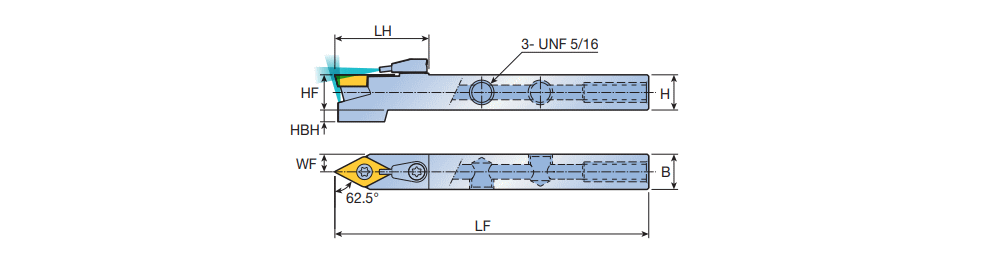

SDNCN-SH-TB : Screw type high pressure coolant holders with 62.5° approach angle & 55° DC.T positive inserts for Swiss type automatic lathes

Coolant pressure: recommended 70 bar, max. up to 140 bar

Designation	HF	H	B	LF	LH	WF	HBH	Fig.	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID		IIC	IIC_2	IIC_3	IIC_4	IIC_5	GICAT	GIREM	giic	GICODE
SDNCN 1212 K11-SH-TB	12.0	12.0	12.0	125.00	32.0	6.00	4.0	1~	9.52~	3.97~	60~	63.0~	SCREW-SH-TB ~	SQUARE ~	N ~	71E01A0E85121 ~	DCMT 11T302 FA	O ~	IS$$1010370168438665 ~	IS$$1023930991875314 ~	IS$$1161173142749010 ~	IS$$1429709850404096 ~	IS$$1519702245489130 ~	6165912		0
SDNCN 1616 K11-SH-TB	16.0	16.0	16.0	125.00	32.0	8.00	-	2~	9.52~	3.97~	60~	63.0~	SCREW-SH-TB ~	SQUARE ~	N ~	71E01A0E85121 ~	DCMT 11T302 FA	O ~	IS$$1010370168438665 ~	IS$$1023930991875314 ~	IS$$1161173142749010 ~	IS$$1429709850404096 ~	IS$$1519702245489130 ~	6165913		0
